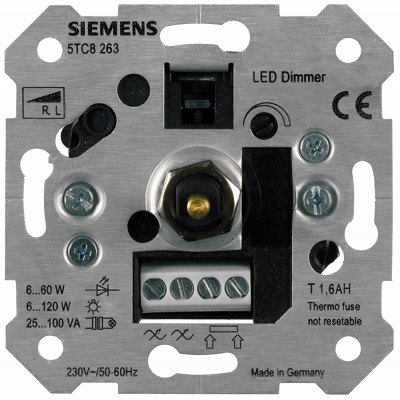

LV dimmer for R, L 6-120 W magnetic transformers and LED lamps with pressure-off/two-way switch flush-mounting, 230 V 50-60 Hz screw-type terminals cl
98.04€
Включая НДС
Артикул: 5TC8263
DELTA ДИММЕР ДЛЯ R,L НАГРУЗОК 6-120W МАГН.ТРАНСФОРМАТОРОВ ИЛИ LED ЛАМП НАЖИМНОЙ 2 WAY SWITCH 230V 50-60HZ ВИНТОВЫЕ КЛЕММЫ DELTA switches and socket outlets – design and quality to perfection from Siemens. Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of products gives you a plethora of individual design options, which expertly emphasize the aesthetics of any room. With our high level of manufacturing competence, we can also guarantee the high-value and long service life of our DELTA switches and sockets - from individual parts to the finished product. Siemens electronic devices for installation technology provide comprehensive additional functions such as: 1. Dimmers for all typical loads, including LED lighting. 2. Motion detection in surface-mounted and flush-mounted versions. 3. Other devices such as shutter/blind controls, timer switches and room temperature controls are available. www.siemens.com/delta. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Method of operation | Turn/push button |
| Colour | Other |
| Halogen free | Да |
| Connection type | - |
| Surface protection | Other |
| Frequency | 50.0 |
| Material quality | Other |
| Type of load | Inductive load |
| Material | Metal |
| Type of fastening | Mounting with claw and screw |
| Light value memory | Нет |
| Substation input | Нет |
| RAL-number (akin) | - |
| Serial dimmer | Нет |
| Applicable with movement sensor | Нет |
| Applicable with transmission button | Нет |
| Applicable with infrared button | Нет |
| Applicable with presence indicator | Нет |
| Applicable with button | Нет |
| Applicable with time switch/timer | Нет |
| Impact strength | - |
| Nominal power | 6.0 |
| Nominal voltage | 230 |
| Control voltage | - |
| Transparent | Нет |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Core cross section | - |
| Width of device | 70.0 |
| Height of device | 70.0 |
| Depth of device | 35.0 |
| Number of modules (module system) | - |
| Dimming phase cut-off | - |
| Dimming phase cut-on | - |
| Min. depth of built-in installation box | - |
| App control via Bluetooth | - |
