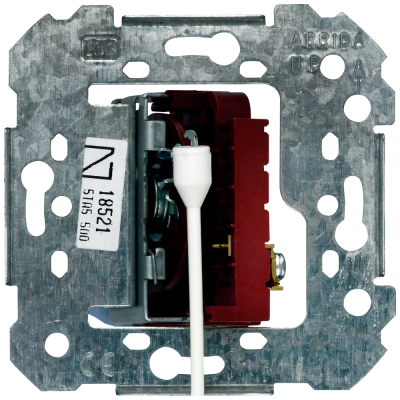

CORAL, IRIS, MEGA push-pull button for pushbutton, support ring 10 A 250 V AC

CORAL, IRIS, MEGA Pull-button for pushbutton Support ring 10A 250V AC DELTA switches and socket outlets – design and quality to perfection from Siemens. Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of products gives you a plethora of individual design options, which expertly emphasize the aesthetics of any room. With our high level of manufacturing competence, we can also guarantee the high-value and long service life of our DELTA switches and sockets - from individual parts to the finished product. The Siemens switch inserts are characterized primarily by: 1. Switches as off switches, change-over switches, intermediate switches, as well as pushbuttons in various designs. 2. Use of the device with a combination bolt for Torx T10 and slotted screwdrivers. 3. 3 mm of plaster compensation ensures reliable functioning, even in the event of extreme wall conditions. 4. Varied designs are available, such as shutter/blind control, motion detection, time switch and room temperature control. www.siemens.com/delta. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Nominal voltage	250
Mounting method	Flush mounted (plaster)
Assembly arrangement	Basic element
Method of operation	Push button/touch control button
Colour	Other
Model	Single push button
Halogen free	Да
Contacts	1 change-over contact
Imprint	None
Surface protection	Other
With signal lamp	Нет
Rated current	10.0
Label space/information surface	Нет
Feedback-signal contact	Нет
Material quality	Other
Number of poles	-
Material	Metal
Type of fastening	Mounting with claw and screw
Number of rockers	1
With lighting	Нет
RAL-number (akin)	-
Transparent	Нет
Surface finishing	Matt
Suitable for degree of protection (IP)	IP20
Width of device	71.0
Height of device	71.0
Depth of device	32.0
Number of modules (module system)	-
Min. depth of built-in installation box	-
Antibacterial treatment	Нет
