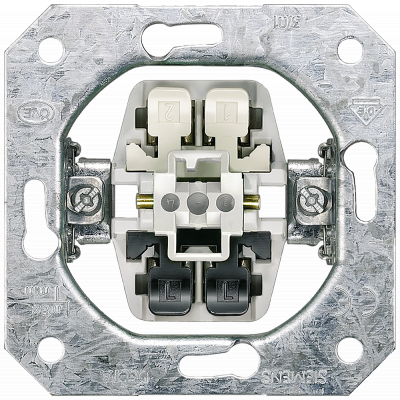

DELTA switch insert FM, 2-pole ON/OFF switch, 10 A 250 V

DELTA ВЫКЛЮЧАТЕЛЬЭЛЕКТРО-МЕХАНИЧ. ЧАСТЬ ДЛЯ МОНТАЖА ПОД ШТУКАТУРКУ 10А 250В 1 КЛАВИША 2-ПОЛЮСНЫЙ DELTA switches and socket outlets – design and quality to perfection from Siemens. Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of products gives you a plethora of individual design options, which expertly emphasize the aesthetics of any room. With our high level of manufacturing competence, we can also guarantee the high-value and long service life of our DELTA switches and sockets - from individual parts to the finished product. The Siemens switch inserts are characterized primarily by: 1. Switches as off switches, change-over switches, intermediate switches, as well as pushbuttons in various designs. 2. Use of the device with a combination bolt for Torx T10 and slotted screwdrivers. 3. 3 mm of plaster compensation ensures reliable functioning, even in the event of extreme wall conditions. 4. Varied designs are available, such as shutter/blind control, motion detection, time switch and room temperature control. www.siemens.com/delta. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Nominal voltage	250
Mounting method	Flush mounted (plaster)
Assembly arrangement	Basic element
Method of operation	Rocker/button
Colour	Other
Halogen free	Да
With mounting plate	Нет
Connection type	Plug clamp
Illumination	Optional
Surface protection	Other
Built-in depth	32.0
Rated current	10.0
Feedback-signal contact	Нет
Material quality	Other
Type of lighting	LED exchangeable
Material	Metal
Type of fastening	Mounting with claw and screw
Wiring system	2-pole switch
Number of rockers	1
RAL-number (akin)	-
Switching current for fluorescent lamps	-
Push button switch	Нет
Washing machine switch	Нет
Surface finishing	Matt
Suitable for degree of protection (IP)	IP20
Width of device	70.0
Height of device	70.0
Depth of device	-
Label space/information surface	No
Function lighting	Illuminated (on)
Number of modules (module system)	-
Min. depth of built-in installation box	-
