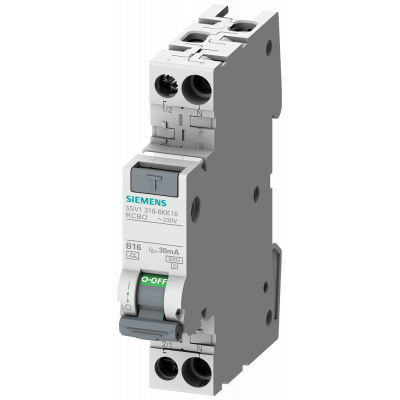

RCBO compact 1P+N 6kA type F 30mA B16.

Дифф.автомат компактный 1P+N 6 kA тип F 30 mA B16 The RCD is the residual current device for touch protection The patented residual current protective devices from Siemens are an important component of the SENTRON protective components for electrical installations because they prevent life-threatening electrical accidents by safely disconnecting hazardous residual currents through grounding. Electrically ignited fires can be prevented as they occur. Whether by direct contact with energized operating parts or by indirect contact with equipment, protection is mainly achieved by a quick shutdown. The Siemens 5SV RCCBs are characterized primarily by: 1. Comprehensive protection from electric shock for personnel and property. 2. Whether sinusoidal residual alternating currents or smooth residual direct currents, Siemens provides the right type for all requirements and special versions. 3. Reliable safety during installation due to standard reach-around and touch protection. 4. Toolless removal from the standard mounting rail or from the busbar assembly simply by operating a manual slide. 5. The data matrix code on the front of the device provides quick and easy access to information on all aspects of RCCBs. 6. Be protected according to the standards: The RCCBs meet the provisions of DIN VDE. 7. Optimized technology for your safety - only from Siemens. https://www.siemens.com/global/en/home/products/energy/low-voltage/components/sentron-protection-devices/residual-current-protective-devices.html. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Voltage type	AC
Built-in depth	70.0
Rated current	16
Rated voltage	230
Release characteristic	B
Rated insulation voltage Ui	253
Rated fault current	0.03
Leakage current type	Other
Surge current capacity	3.0
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	1
Frequency	50
Degree of protection (IP)	IP20
Number of protected poles	1
Concurrently switching N-neutral	Да
Rated short-circuit breaking capacity IEC 60947-2	15.0
Suitable for flush-mounted installation	Да
Connectable conductor cross section solid-core	0.75
Connectable conductor cross section multi-wired	0.75
With interlocking device	Да
Ambient temperature during operating	-
Number of poles (total)	2
Anti-nuisance tripping version	Да
Rated impulse withstand voltage Uimp	4.0
Rated short-circuit breaking capacity Icn acc. EN 61009-1	6.0
Disconnection characteristic	Other
Rated short-circuit breaking capacity acc. EN 61009	6.0
