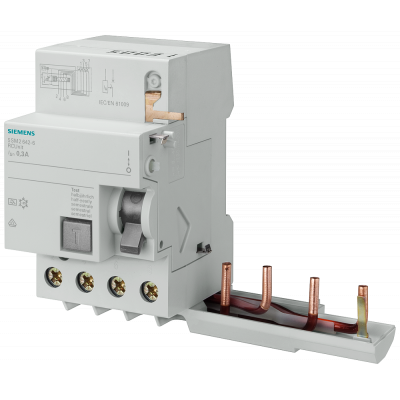

RC unit, 4-pole, type A, In: 40 A, 300 mA, Un AC: 400 V
56.98€
Включая НДС
Артикул: 5SM2643-6
БЛОК УЗО ТИП A 0.3-40A 4-ПОЛ 300MA The RCD is the residual current device for touch protection. The patented residual current protective devices from Siemens are an important component of the SENTRON protective devices for electrical installations because they prevent life-threatening electrical accidents by safely disconnecting hazardous residual currents through grounding. Electrically ignited fires can be prevented as they occur. Whether by direct contact with energized operating parts or by indirect contact with equipment, protection is mainly achieved by a quick shutdown. The residual current operated circuit breakers are characterized primarily by: 1. Comprehensive protection from electric shock for personnel and property. 2. Whether sinusoidal residual alternating currents or smooth residual direct currents, Siemens provides the right type for all requirements and special versions. 3. Be protected according to the standards: All residual current operated circuit breakers correspond to the provisions of DIN VDE. 4. Optimized technology for your safety - only from Siemens. https://www.siemens.com/global/en/home/products/energy/low-voltage/components/sentron-protection-devices/residual-current-protective-devices.html. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Mounting method | DIN rail |
| Built-in depth | 70.0 |
| Rated current | 40 |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 460 |
| Number of poles | 4 |
| Rated fault current | 0.3 |
| Leakage current type | A |
| Selective protection | Нет |
| Short-circuit breaking capacity (Icw) | - |
| Surge current capacity | 1.0 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Short-time delayed tripping | Нет |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 1.5 |
| Connectable conductor cross section multi-wired | 1.5 |
| With interlocking device | Нет |
| Ambient temperature during operating | - |
| Additional equipment possible | Да |
| Rated impulse withstand voltage Uimp | 4.0 |
