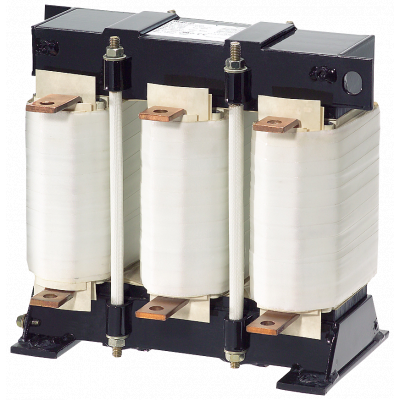

Line reactor, 3-ph., UN1(V) 500, Ithmax 1(A)/F1(Hz):450/50, I LN(A)405
5 043.25€
Включая НДС
Артикул: 4EU3622-5CA00-0AA0
КОММУТИРУЮЩИЙ ДРОССЕЛЬ ДЛЯ ВЫПРЯМИТЕЛЯ, ФАЗ:3, Uн1(В):500, I1(A) / F1(Гц):450 /50, UK(%) :4, Lн(мГн):0,0625, ТЕМП./ КЛ. ИЗОЛ.:40 /H, IP00, ПОДКЛ. :ПЛОСКИЕ КЛЕММЫ, EN 61558-2-20 >ДРОССЕЛЬ< The 4EU three-phase reactors are designed as commutation reactors for high rated current in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.
Параметры
| Degree of protection (IP) | IP00 |
| Rated operation frequency | 50.0 |
| Suitable as output reactance coil | Нет |
| Suitable as interference suppression reactance coil | Да |
| Suitable as ripple filter choke | Нет |
| Suitable as commutation reactance coil | Да |
| Suitable as net reactance coil | Да |
| Rated inductance | 0.062 |
| Max. rated operation voltage Ue | 500 |
| Max. rated current (Ith) at rated voltage DC | 551.4 |
| Number of poles, primary side | 3 |
| Relative short circuit voltage | 4 |
| Resonance frequency | - |
| Rated current at AC | 405 |
| Rated clock frequency | - |
| Degree of protection (NEMA) | - |
