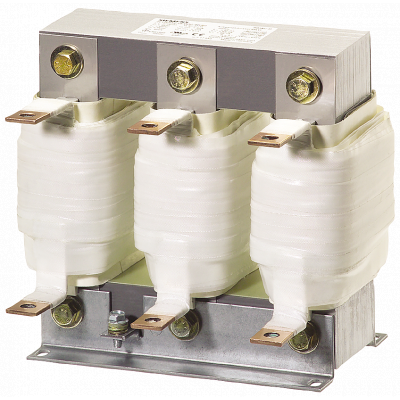

OUTPUT CHOKE, ФАЗ:3, UN1(V) :500, ITHMAX 1(A) / F1(ГЦ):72F (ГЦ):200, F TAKT(KHZ):4, I LN (A):64,8, LN(MH):0,22, UK(%):7, TA/ISOKL:40 /H, IP00, ТИП КОН
1 423.69€
Включая НДС
Артикул: 4EU2452-0EF00-4BA0
OUTPUT CHOKE, ФАЗ:3, UN1(V) :500, ITHMAX 1(A) / F1(ГЦ):72F (ГЦ):200, F TAKT(KHZ):4, I LN (A):64,8, LN(MH):0,22, UK(%):7, TA/ISOKL:40 /H, IP00, ТИП КОНТАКТОВ:ПЛОСКИЕ , EN61558-2-20 >CHOKE<
Параметры
| Degree of protection (IP) | IP00 |
| Rated operation frequency | 0.0 |
| Suitable as output reactance coil | Да |
| Suitable as interference suppression reactance coil | Да |
| Suitable as ripple filter choke | Нет |
| Suitable as commutation reactance coil | Да |
| Suitable as net reactance coil | Да |
| Rated inductance | 0.22 |
| Max. rated operation voltage Ue | 500 |
| Max. rated current (Ith) at rated voltage DC | - |
| Number of poles, primary side | 3 |
| Relative short circuit voltage | 6.9 |
| Resonance frequency | - |
| Rated current at AC | 64.8 |
| Rated clock frequency | 4.0 |
| Degree of protection (NEMA) | - |
