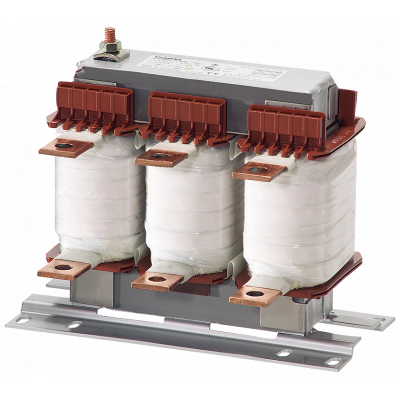

Line reactor f. frequency converter, 3-ph., UN1 500 V, Ithmax=1(A)/F1(Hz) 50/50, I LN(A) 45, EN61558
512.77€
Включая НДС
Артикул: 4EP3800-1US00
СЕТЕВОЙ ДРОССЕЛЬ ДЛЯ ПЧ, ФАЗ:3, Uн1(В):500, I1(A) / F1(Гц):50 /50, UK(%):2, Lн(мГн):0,368, ТЕМП./ КЛ.ИЗОЛ.:40 /B, IP00, ПОДКЛ.:ВИНТОВЫЕ КЛЕММЫ, EN 61558-2-20 >ДРОССЕЛЬ< The 4EM single-phase reactors and 4EP three-phase reactors are designed as commutation reactors in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.
Параметры
| Degree of protection (IP) | IP00 |
| Rated operation frequency | 50.0 |
| Suitable as output reactance coil | Нет |
| Suitable as interference suppression reactance coil | Да |
| Suitable as ripple filter choke | Нет |
| Suitable as commutation reactance coil | Да |
| Suitable as net reactance coil | Да |
| Rated inductance | 0.368 |
| Max. rated operation voltage Ue | 500 |
| Max. rated current (Ith) at rated voltage DC | - |
| Number of poles, primary side | 3 |
| Relative short circuit voltage | 2 |
| Resonance frequency | - |
| Rated current at AC | 45 |
| Rated clock frequency | - |
| Degree of protection (NEMA) | - |
