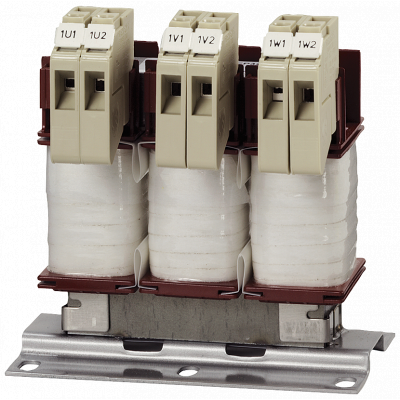

Line reactor f. FU, 3-ph., UN1 500 V, Ithmax=1(A)/F1(Hz) 35.5/50, I LN reactor
462.10€
Включая НДС
Артикул: 4EP3700-1US00
СЕТЕВОЙ ДРОССЕЛЬ ДЛЯ ПЧ, ФАЗ:3, Uн1(В):500, I1(A) / F1(Гц) :35,5 /50, UK(%):2, Lн(мГн) :0,518, ТЕМП./ КЛ.ИЗОЛ.:40 /B, IP00, ПОДКЛ.:ВИНТОВЫЕ КЛЕММЫ, EN 61558-2-20 >ДРОССЕЛЬ< The 4EM single-phase reactors and 4EP three-phase reactors are designed as commutation reactors in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.
Параметры
| Degree of protection (IP) | IP00 |
| Rated operation frequency | 50.0 |
| Suitable as output reactance coil | Нет |
| Suitable as interference suppression reactance coil | Да |
| Suitable as ripple filter choke | Нет |
| Suitable as commutation reactance coil | Да |
| Suitable as net reactance coil | Да |
| Rated inductance | 0.518 |
| Max. rated operation voltage Ue | 500 |
| Max. rated current (Ith) at rated voltage DC | - |
| Number of poles, primary side | 3 |
| Relative short circuit voltage | 2 |
| Resonance frequency | - |
| Rated current at AC | 31.95 |
| Rated clock frequency | - |
| Degree of protection (NEMA) | - |
