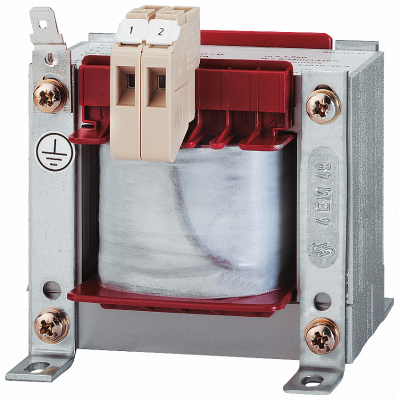

Line reactor, 1-ph., UN1(V) 400, Ithmax 1(A)/F1(Hz):35.5/50
596.03€
Включая НДС
Артикул: 4EM5212-8CB00
КОММУТИРУЮЩИЙ ДРОССЕЛЬ ДЛЯ ВЫПРЯМИТЕЛЯ, ФАЗ:1, Uн1(В):400, I1(A) / F1(Гц):35,5 /50, UK(%) :4, Lн(мГн):1,36, ТЕМП./ КЛ. ИЗОЛ.:40 /B, IP00, ПОДКЛ. :ВИНТОВЫЕ КЛЕММЫ, EN 61558-2-20 >ДРОССЕЛЬ< The 4EM single-phase reactors and 4EP three-phase reactors are designed as commutation reactors in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.
Параметры
| Degree of protection (IP) | IP00 |
| Rated operation frequency | 50.0 |
| Suitable as output reactance coil | Нет |
| Suitable as interference suppression reactance coil | Да |
| Suitable as ripple filter choke | Нет |
| Suitable as commutation reactance coil | Да |
| Suitable as net reactance coil | Да |
| Rated inductance | 1.36 |
| Max. rated operation voltage Ue | 400 |
| Max. rated current (Ith) at rated voltage DC | 43.5 |
| Number of poles, primary side | 1 |
| Relative short circuit voltage | 4 |
| Resonance frequency | - |
| Rated current at AC | 31.95 |
| Rated clock frequency | - |
| Degree of protection (NEMA) | - |
