Power supply 1-ph. PN(kW) 0.06, Upri(V) 400-230 (240)-115 (120)
277.99€
Включая НДС
Артикул: 4AV2001-2EB00-0A

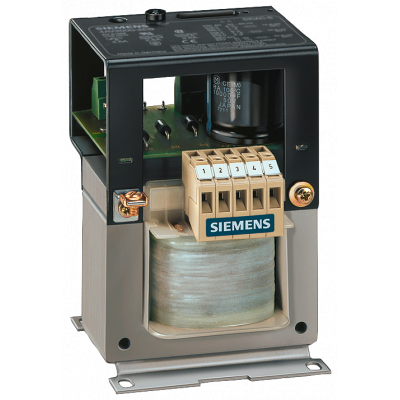

1-ФАЗНЫЙ БЛОК ПИТАНИЯ ПЕРВ 400-230(240)-115(120) V ВТОР 24 ФИЛЬТРУЮЩИЙ EN 60742, EN61131-2 СТЕПЕНЬ ЗАЩИТЫ IP00 ВИНТОВЫЕ КЛЕММЫ, ИНТЕГ. МОНТ. НА РЕЙКУ 35MMNG RAILS, EN 61558-2-6, EN61131-2 >SAFETY ISOLATING TRANSFORMER< The 4AV power supplies deliver a non-stabilized DC voltage of 24 V DC based on single-phase or three-phase safety transformers with downstream rectifiers and capacitor filtering according to EN61131-2.
Параметры
| Width | 84.0 |
| Height | 142.0 |
| Depth | 100.0 |
| Built-in height | - |
| Power consumption | - |
| Built-in width | 84.0 |
| Modular version | - |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC |
| Power output | - |
| Output voltage stabilized | - |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Wall mounting possible | Нет |
| Stabilized | - |
| Degree of protection (IP) | IP00 |
| Direct mounting possible | - |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | - |
| Rated supply voltage at AC 50 Hz | - |
| Rated supply voltage at AC 60 Hz | - |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 2.5 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | - |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
