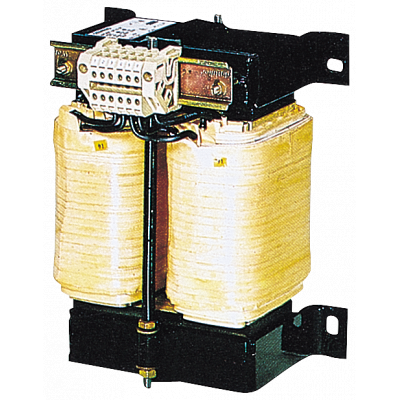

Transformer 1-ph. PN/PN(kVA)6.3/22.5, Upri(V) 440, Usec(V) 230, Isec(A) 27.4
1 902.77€
Включая НДС
Артикул: 4AT3632-5CT10-0FA0
1-ФАЗ. ТРАНСФОРМАТОР УПРАВЛ./ РАЗДЕЛИТЕЛЬНЫЙ ТРАНСФОРМАТОР PN = 6,3 KVA VDE/UL/CSA ПЕРВ 440+/-5% V ВТОР 230 EN 61558-2-1, -2-2, -2-4 СТЕПЕНЬ ЗАЩИТЫ IP00 ВИНТОВЫЕ КЛЕММЫOL CIRCUIT TRANSFORMER< >ISOLATION TRANSFORMER< The 4AT transformers unite all properties of single-phase safety, isolating, control and line transformers.
Параметры
| Width | 194.0 |
| Height | 320.0 |
| Depth | 169.0 |
| Modular version | Нет |
| Conductor material | Other |
| Degree of protection (IP) | IP00 |
| Primary voltage 1 | 462 |
| Primary voltage 2 | 440 |
| Primary voltage 3 | 418 |
| Suitable for mounting on PCB | Нет |
| Ring core | Нет |
| Built as energy saving transformer | Нет |
| Built as safety transformer | Нет |
| Built as isolating transformer | Нет |
| Type of insulation material acc. IEC 85 | H |
| Short-circuit-proof | Нет |
| Primary voltage 10 | - |
| Primary voltage 4 | - |
| Primary voltage 5 | - |
| Primary voltage 6 | - |
| Primary voltage 7 | - |
| Primary voltage 8 | - |
| Primary voltage 9 | - |
| Relative short circuit voltage | 3.97 |
| Secondary voltage 1 | 230 |
| Secondary voltage 10 | - |
| Secondary voltage 2 | - |
| Secondary voltage 3 | - |
| Secondary voltage 4 | - |
| Secondary voltage 5 | - |
| Secondary voltage 6 | - |
| Secondary voltage 7 | - |
| Secondary voltage 8 | - |
| Secondary voltage 9 | - |
| Rated apparent power | 6300.0 |
