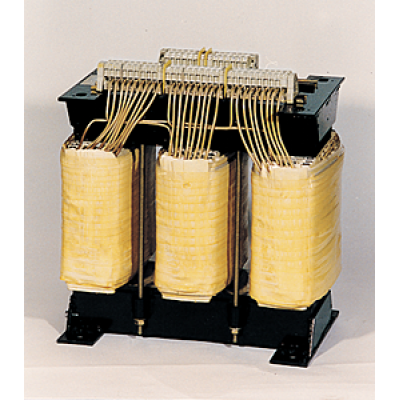

Transformer, 3-ph. PN/PN(kVA)2.5/11, Upri(V) Y500-400/D289-230, Usec(V) Y 400/D 230
1 659.85€
Включая НДС
Артикул: 4AP2742-8BC40-0HA0
3-ФАЗ. -ТРАНСФОРМАТОР УПРАВЛ./ РАЗДЕЛИТЕЛЬНЫЙ ТРАНСФОРМАТОР PN = 2,5 KVA VDE/UL/CSA ПЕРВ Y 500-400/D 289-230 V ВТОР Y 400/D 230 ВЕКТОРНАЯ ГРУППА:IIIIII0 EN 61558-2-1, -2-2, -2-4 СТЕПЕНЬ ЗАЩИТЫ IP00 61558-2-1, -2-2, -2-4 >CONTROL CIRCUIT TRANSFORMER< >ISOLATION TRANSFORMER< The 4AP 3-phase transformers are implemented as isolating, safety or matching transformers with different primary and secondary voltages and vector groups. They are suitable for a "fuseless design" due to their low inrush current and this is achieved with SIRIUS 3RV motor starter protectors/circuit breakers.
Параметры
| Width | 264.0 |
| Height | 242.0 |
| Depth | 242.0 |
| Conductor material | Other |
| Wiring system | Other |
| Degree of protection (IP) | IP00 |
| Primary voltage 1 | 500 |
| Primary voltage 2 | 400 |
| Primary voltage 3 | 289 |
| Built as energy saving transformer | Нет |
| Rated power | 2500.0 |
| Built as safety transformer | Нет |
| Built as isolating transformer | Нет |
| Type of insulation material acc. IEC 85 | B |
| Short-circuit-proof | Нет |
| Primary voltage 10 | - |
| Primary voltage 4 | 230 |
| Primary voltage 5 | - |
| Primary voltage 6 | - |
| Primary voltage 7 | - |
| Primary voltage 8 | - |
| Primary voltage 9 | - |
| Relative short circuit voltage | 3.89 |
| Secondary voltage 1 | 400 |
| Secondary voltage 10 | - |
| Secondary voltage 2 | 230 |
| Secondary voltage 3 | - |
| Secondary voltage 4 | - |
| Secondary voltage 5 | - |
| Secondary voltage 6 | - |
| Secondary voltage 7 | - |
| Secondary voltage 8 | - |
| Secondary voltage 9 | - |
| Degree of protection (NEMA) | - |
