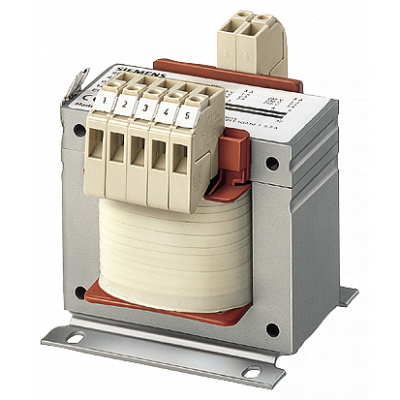

Transformer 1-ph. PN/PN(kVA) 0.5/2, Upri(V)690, Usec(V) 230, Isec(A) 2.17
252.35€
Включая НДС
Артикул: 4AM4842-5MT10-0FA1
1-ФАЗ. ТРАНСФОРМАТОР УПРАВЛЯЮЩИЙ/РАЗДЕЛИТЕЛЬНЫЙ PN = 0,5 KVA VDE/UL/CSA ПЕРВ 690+/-5% V ВТОР 230 EN 61558-2-1, -2-2, -2-4 СТЕПЕНЬ ЗАЩИТЫ IP00 ПРУЖИННЫЕ ЗАЖИМЫ CAGE-CLAMP The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.
Параметры
| Width | 122.0 |
| Height | 121.0 |
| Depth | 134.0 |
| Modular version | Нет |
| Conductor material | Other |
| Degree of protection (IP) | IP00 |
| Primary voltage 1 | 725 |
| Primary voltage 2 | 690 |
| Primary voltage 3 | 655 |
| Suitable for mounting on PCB | Нет |
| Ring core | Нет |
| Built as energy saving transformer | Нет |
| Built as safety transformer | Нет |
| Built as isolating transformer | Нет |
| Type of insulation material acc. IEC 85 | B |
| Short-circuit-proof | Нет |
| Primary voltage 10 | - |
| Primary voltage 4 | - |
| Primary voltage 5 | - |
| Primary voltage 6 | - |
| Primary voltage 7 | - |
| Primary voltage 8 | - |
| Primary voltage 9 | - |
| Relative short circuit voltage | 3.8 |
| Secondary voltage 1 | 230 |
| Secondary voltage 10 | - |
| Secondary voltage 2 | - |
| Secondary voltage 3 | - |
| Secondary voltage 4 | - |
| Secondary voltage 5 | - |
| Secondary voltage 6 | - |
| Secondary voltage 7 | - |
| Secondary voltage 8 | - |
| Secondary voltage 9 | - |
| Rated apparent power | 500.0 |
