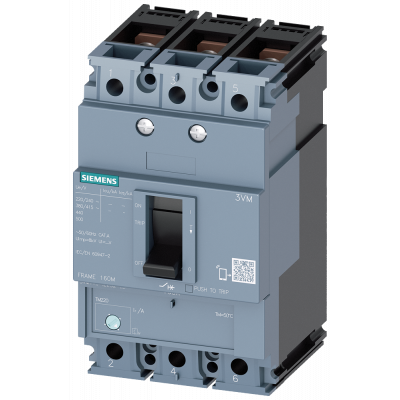

Circuit breaker 3VM1 IEC frame 160 breaking capacity class M Icu=55 kA @ 415 V 3-pole.
278.76€
Включая НДС
Артикул: 3VM1163-5EE32-0AA0
Автоматический выключатель 3VM1 IEC frame 160 breaking capacity class M Icu=55kA @ 415 V 3-pole, line protection TM220, atfm, In=63a overload protection Ir=44,1a ...63A short circuit protection iI=10 x In busbar connection no value no value no value no value no value
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 63.0 |
| Number of poles | 3 |
| Overload release current setting | 44 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | 500 |
| Degree of protection (IP) | IP40 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | - |
| Type of control element | Rocker lever |
| With switched-off indicator | - |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 630 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Нет |
| With under voltage release | - |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
