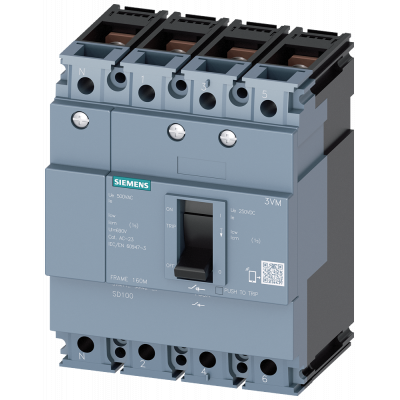

Switch disconnector 3VA1 IEC frame 160 4-pole SD100, In=63 A without overload protection.
262.20€
Включая НДС
Артикул: 3VM1163-1AA42-0AA0
switch disconnector 3VA1 IEC frame 160 4-pole SD100, In=63A without overload protection w/o short-circuit protection nut keeper kit no value no value no value no value no value
Параметры
| Rated operation power at AC-3, 400 V | - |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 63.0 |
| Number of poles | 4 |
| Rated operating voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Degree of protection (IP), front side | IP40 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | - |
| Interlockable | Нет |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Rail connection |
| Version as emergency stop installation | Да |
| Type of control element | Rocker lever |
| Version as main switch | Да |
| Version as safety switch | Да |
| Version as maintenance-/service switch | Да |
| Rated operation power at AC-23, 400 V | - |
| Rated short-time withstand current lcw | - |
| Colour control element | - |
| Suitable for ground mounting | - |
| Suitable for front mounting 4-hole | Да |
| Suitable for front mounting centre | Нет |
| Suitable for distribution board installation | Нет |
| Suitable for intermediate mounting | Нет |
| Max. rated operation voltage Ue AC | 500 |
| Motor drive optional | Да |
| Voltage release optional | Да |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | - |
| Switching power at 400 V | - |
| Version as reversing switch | - |
| Rated permanent current at AC-23, 400 V | 63 |
| Degree of protection (NEMA) | - |
