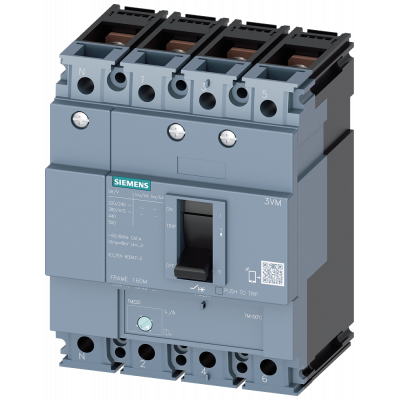

Circuit breaker 3VM1 IEC frame 160 breaking capacity class N Icu=25 kA @ 415 V 4-pole.
386.40€
Включая НДС
Артикул: 3VM1110-3GE42-0AA0
Автоматический выключатель 3VM1 IEC frame 160 breaking capacity class N Icu=25kA @ 415 V 4-pole, line protection TM220, atfm, In=100A overload protection ir=70A ...100A short circuit protection iI=10 x In neutral protection 100% busbar connection no value no value no value no value no value
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 100.0 |
| Number of poles | 4 |
| Overload release current setting | 70 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | 500 |
| Degree of protection (IP) | IP40 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | - |
| Type of control element | Rocker lever |
| With switched-off indicator | - |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 25.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 1000 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Нет |
| With under voltage release | - |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
