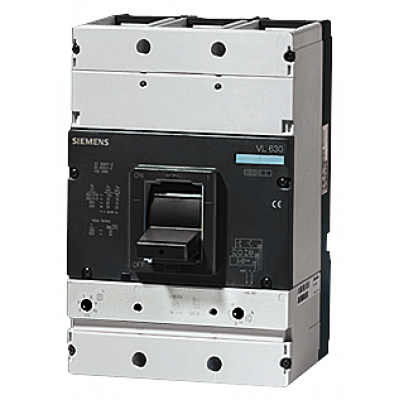

АВТ. ВЫКЛЮЧАТЕЛЬ VL 630H ВЫСОК. ОТКЛ.СПОС. ICU= 70KA, 415V AC 4-ПОЛ., PLANT PROTECTION МАКС. РАСЦ. ETU10, LI IN= 630A, RATED CURRENT IR= 252...630A, O
7 484.40€
Включая НДС
Артикул: 3VL5763-2LA46-0AA0
АВТ. ВЫКЛЮЧАТЕЛЬ VL 630H ВЫСОК. ОТКЛ.СПОС. ICU= 70KA, 415V AC 4-ПОЛ., PLANT PROTECTION МАКС. РАСЦ. ETU10, LI IN= 630A, RATED CURRENT IR= 252...630A, OVERLOAD PROTECTION, II= 1.25 TO 10 X IN, SHORT-CIRCUIT PROTECTION N-PROTECTED MARINE APPROVAL ДЛЯ LRS, DNV БЕЗ ДОП.РАСЦЕПИТЕЛЯ БЕЗ ДОП.КОНТАКТОВ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 630.0 |
| Number of poles | 4 |
| Overload release current setting | 252 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 788 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
