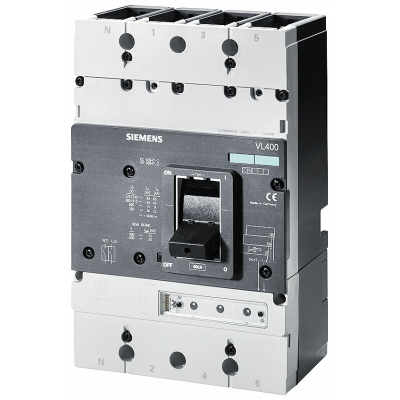

АВТ. ВЫКЛЮЧАТЕЛЬ VL 400L ОЧ. ВЫСОК.ОТКЛ.СПОС. ICU=100KA / 415 V AC 4 ПОЛ., ЗАЩИТА ЛИНИЙ РАСЦЕПИТЕЛЬ ETU10, LI IN=315A, RATED CURRENT IR=128-315A, OVER
5 166.00€
Включая НДС
Артикул: 3VL4731-3NB46-0AA0
АВТ. ВЫКЛЮЧАТЕЛЬ VL 400L ОЧ. ВЫСОК.ОТКЛ.СПОС. ICU=100KA / 415 V AC 4 ПОЛ., ЗАЩИТА ЛИНИЙ РАСЦЕПИТЕЛЬ ETU10, LI IN=315A, RATED CURRENT IR=128-315A, OVERLOAD II=1,25TO11XIN, SHORT CIRCUIT N PROTECTED WITHOUT AUXILIARY РАСЦЕПИТЕЛЬ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 315.0 |
| Number of poles | 4 |
| Overload release current setting | 126 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 100.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 394 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
