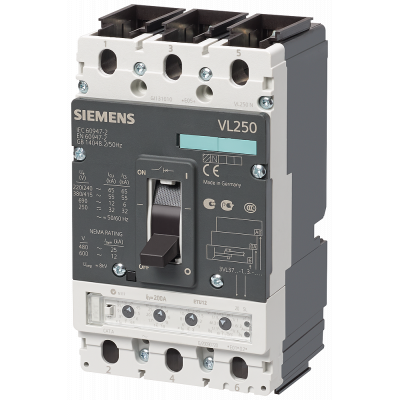

АВТ. ВЫКЛЮЧАТЕЛЬ VL 250N СТД. ОТКЛ.СПОС. ICU=55KA / 415 V AC 3 ПОЛ., MOTOR/ GENERATOR PROTECTION РАСЦЕПИТЕЛЬ ETU10M, LI IN=250A, RATED CURRENT IR=100
2 268.00€
Включая НДС
Артикул: 3VL3725-1MP33-0AA0
АВТ. ВЫКЛЮЧАТЕЛЬ VL 250N СТД. ОТКЛ.СПОС. ICU=55KA / 415 V AC 3 ПОЛ., MOTOR/ GENERATOR PROTECTION РАСЦЕПИТЕЛЬ ETU10M, LI IN=250A, RATED CURRENT IR=100-250A, OVERLOAD II=1,25TO11XIN, SHORT-CIRCUIT WITHOUT AUXILIARY РАСЦЕПИТЕЛЬ WITH РАМОЧНЫЙ ЗАЖИМ БЕЗ СИГНАЛЬНЫХ/АВАРИЙНЫХ КОНТАКТОВ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 250.0 |
| Number of poles | 3 |
| Overload release current setting | 100 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Frame clamp |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 313 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
