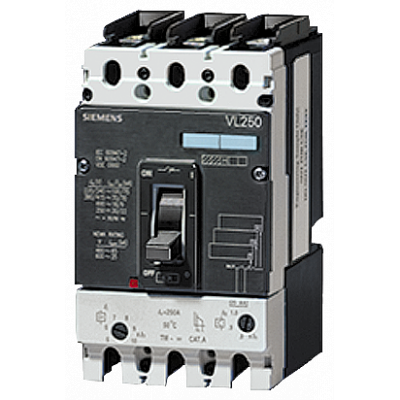

АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ VL 250N СТАНДАРТНАЯ ОТКЛЮЧАЮЩАЯ СПОСОБНОСТЬ ICU=55KA/415 V AC 3-ПОЛЮСА, ЗАЩИТА УСТАНОВОК, РАСЦЕПИТЕЛЬ МАКСИМАЛЬНОГО ТОКА TM
1 903.86€
Включая НДС
Артикул: 3VL3725-1DC36-2PA0
АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ VL 250N СТАНДАРТНАЯ ОТКЛЮЧАЮЩАЯ СПОСОБНОСТЬ ICU=55KA/415 V AC 3-ПОЛЮСА, ЗАЩИТА УСТАНОВОК, РАСЦЕПИТЕЛЬ МАКСИМАЛЬНОГО ТОКА TM, LI IN=250A, НОМИНАЛЬНЫЙ ТОК IR=200-250A, ПЕРЕГРУЗКА II=1200-2500A, К.З. МИНИМАЛЬНЫЙ РАСЦЕПИТЕЛЬ 24 V DC БЕЗ ДОП.КОНТАКТОВ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 250.0 |
| Number of poles | 3 |
| Overload release current setting | 200 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 1250 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Да |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
