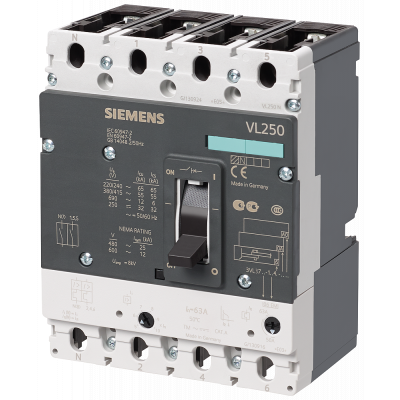

АВТ. ВЫКЛЮЧАТЕЛЬ VL 250L ОЧ. ВЫСОК.ОТКЛ.СПОС. ICU= 100KA, 415V AC 4-ПОЛ., PLANT PROTECTION РАСЦЕПИТЕЛЬ ETU20, LSI IN= 200A, RATED CURRENT IR= 80...200
4 460.40€
Включая НДС
Артикул: 3VL3720-3LF46-0AA0
АВТ. ВЫКЛЮЧАТЕЛЬ VL 250L ОЧ. ВЫСОК.ОТКЛ.СПОС. ICU= 100KA, 415V AC 4-ПОЛ., PLANT PROTECTION РАСЦЕПИТЕЛЬ ETU20, LSI IN= 200A, RATED CURRENT IR= 80...200A, OVERLOAD PROTECTION, ISD=1.5 TO 10 X IR, II=11 X IN SHORT-CIRCUIT PROTECTION N-PROTECTED W/O AUXILIARY БЕЗ СИГНАЛЬНЫХ/АВАРИЙНЫХ КОНТАКТОВ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 200.0 |
| Number of poles | 4 |
| Overload release current setting | 80 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 100.0 |
| Adjustment range short-term delayed short-circuit release | 300 |
| Adjustment range undelayed short-circuit release | 2200 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
