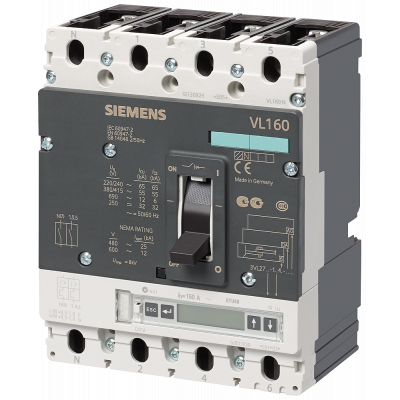

АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ VL 160N СТАНДАРТНАЯ ОТКЛЮЧАЮЩАЯ СПОСОБНОСТЬ ICU=55KA / 415 V AC 4 ПОЛЮСА, ЗАЩИТА ЭЛЕКТРОУСТАНОВОК РАСЦЕПИТЕЛЬ LCD ETU42, LS
3 553.20€
Включая НДС
Артикул: 3VL2716-1UN46-0AA0
АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ VL 160N СТАНДАРТНАЯ ОТКЛЮЧАЮЩАЯ СПОСОБНОСТЬ ICU=55KA / 415 V AC 4 ПОЛЮСА, ЗАЩИТА ЭЛЕКТРОУСТАНОВОК РАСЦЕПИТЕЛЬ LCD ETU42, LSIG IN=160A, RATED CURRENT IR=64-160A, OVERLOAD ISD=1,5TO10XIR, II=11XIN SHORT-CIRCUIT N PROTECTED WITH EA БЕЗ СИГНАЛЬНЫХ/АВАРИЙНЫХ КОНТАКТОВ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 160.0 |
| Number of poles | 4 |
| Overload release current setting | 64 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55.0 |
| Adjustment range short-term delayed short-circuit release | 240 |
| Adjustment range undelayed short-circuit release | 200 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Да |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
