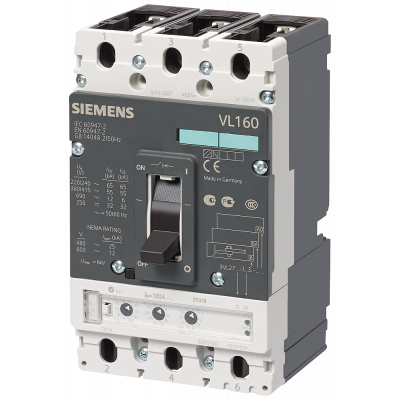

АВТ. ВЫКЛЮЧАТЕЛЬ VL 160L ОЧ. ВЫСОКАЯ ОТКЛ.СПОСОБНОСТЬ ICU= 100KA, 415V AC 3-ПОЛ., PLANT PROTECTION РАСЦЕПИТЕЛЬ ETU20, LSI IN= 100A, RATED CURRENT IR=
1 713.60€
Включая НДС
Артикул: 3VL2710-3LE36-0AA0
АВТ. ВЫКЛЮЧАТЕЛЬ VL 160L ОЧ. ВЫСОКАЯ ОТКЛ.СПОСОБНОСТЬ ICU= 100KA, 415V AC 3-ПОЛ., PLANT PROTECTION РАСЦЕПИТЕЛЬ ETU20, LSI IN= 100A, RATED CURRENT IR= 40...100A, OVERLOAD PROTECTION, ISD=1.5 TO 10 X IR, II=11 X IN SHORT-CIRCUIT PROTECTION W. SCREW TERMINAL БЕЗ СИГНАЛЬНЫХ/АВАРИЙНЫХ КОНТАКТОВ
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 100.0 |
| Number of poles | 3 |
| Overload release current setting | 40 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 100.0 |
| Adjustment range short-term delayed short-circuit release | 150 |
| Adjustment range undelayed short-circuit release | 1100 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
