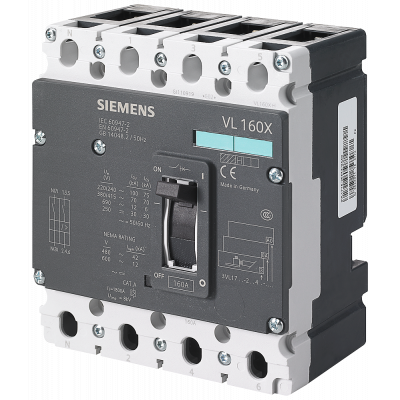

АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ VL 160X N СТАНДАРТНАЯ ОТКЛЮЧАЮЩАЯ СПОСОБНОСТЬ ICU= 40KA, 415V AC 4-Х ПОЛЮСНЫЙ, ДЛЯ ЗАЩИТЫ УСТАНОВОК МАКСИМАЛЬНЫЙ РАСЦЕПИТЕЛ
736.73€
Включая НДС
Артикул: 3VL1706-1EA43-0AB1
АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ VL 160X N СТАНДАРТНАЯ ОТКЛЮЧАЮЩАЯ СПОСОБНОСТЬ ICU= 40KA, 415V AC 4-Х ПОЛЮСНЫЙ, ДЛЯ ЗАЩИТЫ УСТАНОВОК МАКСИМАЛЬНЫЙ РАСЦЕПИТЕЛЬ TM, LI IN= 63A, РАСЧЕТНЫЙ ТОК IR= 63A, ЗАЩИТА ОТ ПЕРГРУЗКИ II= 600A, ЗАЩИТА ОТ К.З. N GEКОНТАКТОРT БЕЗ ДОП.РАСЦЕПИТЕЛЯ НАБОР СИГНАЛЬНЫХ КОНТАКТОВ 2HS (1NO+1NC)
Параметры
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated permanent current Iu | 63.0 |
| Number of poles | 4 |
| Overload release current setting | 63 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Frame clamp |
| Type of control element | - |
| With switched-off indicator | Нет |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55.0 |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 600 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Да |
| With under voltage release | Нет |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
