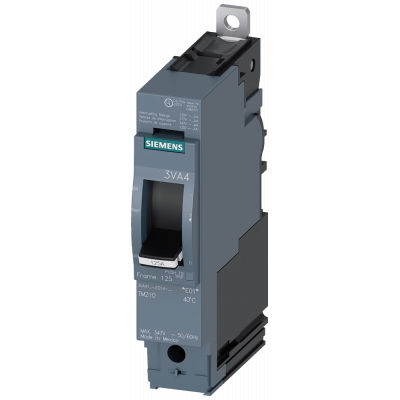

Автоматический выключатель 3VA4 UL frame 125 breaking capacity class H 65kA @ 277 V 1-pole, line protection TM210, FTFM, In=80A overload protection Ir
266.34€
Включая НДС
Артикул: 3VA4180-6ED14-3AA0
Автоматический выключатель 3VA4 UL frame 125 breaking capacity class H 65kA @ 277 V 1-pole, line protection TM210, FTFM, In=80A overload protection Ir=80A fixed short circuit protection Ii=10 x In
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | - |
| Number of poles | 1 |
| Overload release current setting | 80 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP40 |
| Position of connection for main current circuit | Other |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Other |
| Type of control element | Rocker lever |
| With switched-off indicator | - |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | - |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 800 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Нет |
| With under voltage release | - |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
