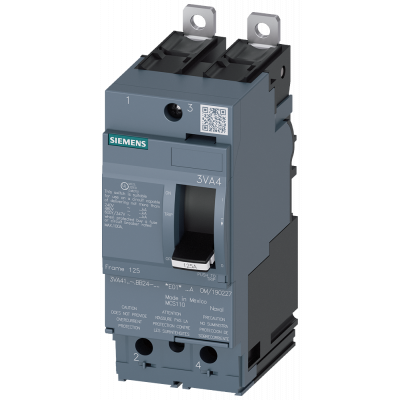

molded case switch 3VA4 UL frame 125 max short-circuit curr. rating 65kA @ 480 V 2-pole MCS110, In=100A without overload protection - self protection
357.42€
Включая НДС
Артикул: 3VA4110-1BB24-3AA0
molded case switch 3VA4 UL frame 125 max short-circuit curr. rating 65kA @ 480 V 2-pole MCS110, In=100A without overload protection - self protection Ii=16 x In
Параметры
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | - |
| Number of poles | 2 |
| Overload release current setting | - |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | - |
| Degree of protection (IP) | IP40 |
| Position of connection for main current circuit | Other |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Other |
| Type of control element | Rocker lever |
| With switched-off indicator | - |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | - |
| Adjustment range short-term delayed short-circuit release | - |
| Adjustment range undelayed short-circuit release | 1600 |
| Suitable for DIN rail (top hat rail) mounting | Да |
| Integrated earth fault protection | Нет |
| Motor drive optional | Нет |
| With under voltage release | - |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Да |
| Complete device with protection unit | Да |
