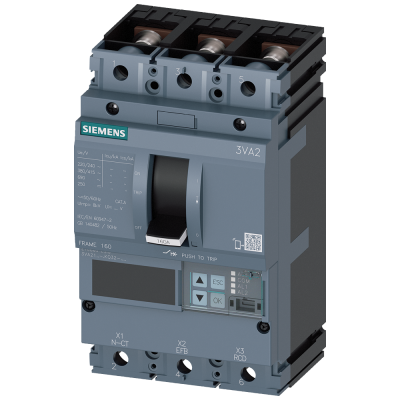

ВЫКЛЮЧАТЕЛЬ В ЛИТОМ КОРПУСЕ 3VA2 IEC ТИПОРАЗМЕР 160 КЛАСС ОТКЛ. СПОСОБНОСТИ H ICU=85KA @ 415 В 3-ПОЛЮС., ЗАЩИТА ЛИНИИ ETU860, LSIG, IN=100A ЗАЩИТА ОТ

ВЫКЛЮЧАТЕЛЬ В ЛИТОМ КОРПУСЕ 3VA2 IEC ТИПОРАЗМЕР 160 КЛАСС ОТКЛ. СПОСОБНОСТИ H ICU=85KA @ 415 В 3-ПОЛЮС., ЗАЩИТА ЛИНИИ ETU860, LSIG, IN=100A ЗАЩИТА ОТ ПЕРЕГРУЗКИ IR=40A ...100A ЗАЩИТА ОТ ТОКА КЗ ISD=0,6..10X IN, II=1,5..12X IN ЗАЩИТА НЕЙТРАЛИ ОПЦИОНАЛЬНО С ВНЕШНИМ ТТ , ДО 160% ЗАЩИТА ОТ ЗАМЫКАНИЯ НА ЗЕМЛЮ, ПЕРЕКЛЮЧ. IG=0,2... 1 X IN, TG=0,050,8MS ШИННОЕ ПРИСОЕДИНЕНИЕ 3VA2 molded-case circuit breaker with 8-series ETU for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for plant protection and generator protection. 3. Available as 3-pole and 4-pole version. 4. Four breaking capacity classes from 55 kA to 150 kA at 415 V. 5. Depending on the size: Rated current 25 A. 630 A. 6. Can be installed fixed, in plug-in design or as withdrawable version. 7. The series has a solid-state overcurrent trip unit. 8. Integrated display for measured values. 9. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS. 10. Modular and easy-to-fit internal accessories with wide range of functions. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	-
Number of poles	3
Overload release current setting	40
Number of auxiliary contacts as change-over contact	0
Rated voltage	-
Degree of protection (IP)	IP40
Position of connection for main current circuit	Front side
Motor drive integrated	Нет
Type of electrical connection of main circuit	Screw connection
Type of control element	Rocker lever
With switched-off indicator	-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	85.0
Adjustment range short-term delayed short-circuit release	60
Adjustment range undelayed short-circuit release	150
Suitable for DIN rail (top hat rail) mounting	Да
Integrated earth fault protection	Да
Motor drive optional	Да
With under voltage release	-
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	Да
Complete device with protection unit	Да
