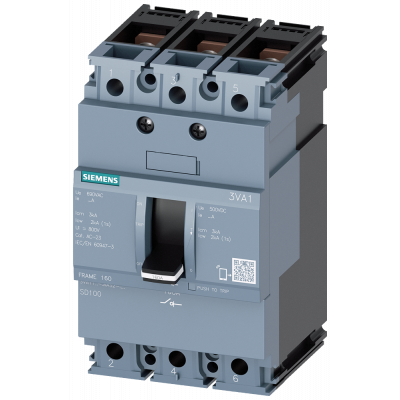

Switch disconnector 3VA1 IEC frame 160 3-pole SD100, In=63 A without overload protection.

РАЗЪЕДИНИТЕЛЬ НАГРУЗКИ 3VA1 IEC ТИПОРАЗМЕР 160 3-ПОЛЮС. SD100, IN=63A БЕЗ ЗАЩИТЫ ОТ ПЕРЕГРУЗКИ БЕЗ ЗАЩИТЫ ОТ ТОКА КЗ ШИННОЕ ПРИСОЕДИНЕНИЕ 3VA1 molded-case circuit breakers as switch disconnector variants in accordance with IEC 60947-3. 3VA molded-case circuit breakers are an important element of SENTRON protective components for industrial and infrastructure applications. The IEC 60947-3-compliant switch disconnector version of the 3VA1 allows you to use a molded-case circuit breaker to disconnect individual plant components safely and reliably. The 3VA molded-case circuit breakers are setting new standards in terms of flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as switch disconnector versions in accordance with IEC 60947-3. 3. Available as 3-pole and 4-pole version. 4. Depending on the size: Rated uninterrupted current of 63 A to 250 A. 5. Fixed and plug-in installation possible. 6. Modular and easy-to-fit internal accessories with wide range of functions. 7. Integrated accessories platform for all 3VA molded-case circuit breakers. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Rated operation power at AC-3, 400 V	-
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	63.0
Number of poles	3
Rated operating voltage	-
Conditioned rated short-circuit current Iq	-
Degree of protection (IP), front side	IP40
Number of auxiliary contacts as change-over contact	0
Number of switches	-
Interlockable	Нет
Motor drive integrated	Нет
Type of electrical connection of main circuit	Rail connection
Version as emergency stop installation	Да
Type of control element	Rocker lever
Version as main switch	Да
Version as safety switch	Да
Version as maintenance-/service switch	Да
Rated operation power at AC-23, 400 V	-
Rated short-time withstand current lcw	-
Colour control element	-
Suitable for ground mounting	-
Suitable for front mounting 4-hole	Да
Suitable for front mounting centre	Нет
Suitable for distribution board installation	Нет
Suitable for intermediate mounting	Нет
Max. rated operation voltage Ue AC	690
Motor drive optional	Да
Voltage release optional	Да
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	-
Switching power at 400 V	-
Version as reversing switch	-
Rated permanent current at AC-23, 400 V	63
Degree of protection (NEMA)	-
