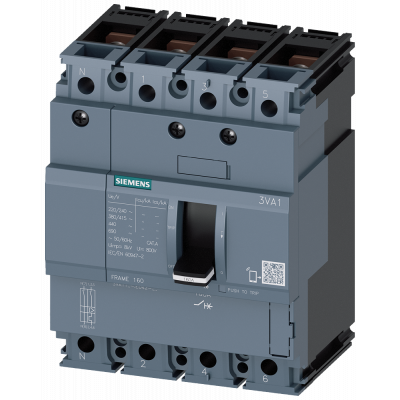

ВЫКЛЮЧАТЕЛЬ В ЛИТОМ КОРПУСЕ 3VA1 IEC ТИПОРАЗМЕР 160 КЛАСС ОТКЛ. СПОСОБНОСТИ S ICU=36KA @ 415 В 4-ПОЛЮС., ЗАЩИТА ЛИНИИ TM210, FTFM, IN=20A ЗАЩИТА ОТ

ВЫКЛЮЧАТЕЛЬ В ЛИТОМ КОРПУСЕ 3VA1 IEC ТИПОРАЗМЕР 160 КЛАСС ОТКЛ. СПОСОБНОСТИ S ICU=36KA @ 415 В 4-ПОЛЮС., ЗАЩИТА ЛИНИИ TM210, FTFM, IN=20A ЗАЩИТА ОТ ПЕРЕГРУЗКИ IR=20A ФИКСИР. ЗАЩИТА ОТ ТОКА КЗ II=16 X IN БЕЗ ЗАЩИТЫ НЕЙТРАЛИ ШИННОЕ ПРИСОЕДИНЕНИЕ 3VA1 molded-case circuit breaker for starter protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for starter circuit breaker to protect electrical motors from short circuits. 3. Available as 3-pole version. 4. Depending on the size: Rated operating current of 32 A to 200 A. 5. Breaking capacity of 55 kA to 70 kA at 415 V. 6. Fixed and plug-in installation possible. 7. The series has a thermo-magnetic trip unit 8. Modular and easy-to-fit internal accessories with wide range of functions. 9. Integrated accessories platform for all 3VA molded-case circuit breakers. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	20.0
Number of poles	4
Overload release current setting	20
Number of auxiliary contacts as change-over contact	0
Rated voltage	690
Degree of protection (IP)	IP40
Position of connection for main current circuit	Front side
Motor drive integrated	Нет
Type of electrical connection of main circuit	-
Type of control element	Rocker lever
With switched-off indicator	-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	36.0
Adjustment range short-term delayed short-circuit release	-
Adjustment range undelayed short-circuit release	320
Suitable for DIN rail (top hat rail) mounting	Да
Integrated earth fault protection	Нет
Motor drive optional	Да
With under voltage release	-
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	Да
Complete device with protection unit	Да
