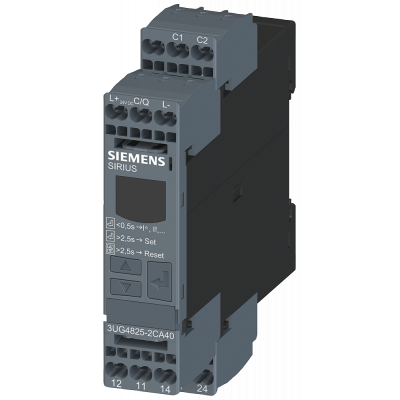

Monitoring relay, digital, transformer 3UL23 spring

Цифровое реле контроля для контроля тока утечки с дифференциальным преобразователем тока 3UL23 для IO-Link Диапазон настройки 0,03–40 A отдельно для порога предупреждения и значения отключения Задержка запуска и срабатывания 0–999,9 с Гистерезис отключения до 50 % Гистерезис предупреждения 5 % фиксир. Ширина 22,5 мм, 2 переключающих контакта контроль рампы торможения (с датчиком или без него) Пружинные клеммы Residual current monitoring relay with digital setting SIRIUS 3UG4 for monitoring plants for residual currents, e.g. due to dust deposits or moisture, porous cables and leads, or capacitive residual currents. Worldwide use thanks to wide voltage supply range and international certificates. Fast commissioning possible, thanks to menu-guided parameterization and actual value display for limit value determination. The devices features a permanent display of actual value and fault type, a high measuring accuracy and permanent self-monitoring. Device replacement possible without rewiring, thanks to removable terminals Reliable system diagnostics, thanks to unambiguous error messages on the display and connectable fault memory. High level of flexibility and space saving through installation of the associated 3UL23 transformer inside or outside the control cabinet. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. They are optionally available with IO-Link. Note: Please order the necessary 3UL23 residual-current transformer separately. Additional comprehensive range of accessories, such as unit labeling plates, push-in lugs and cover caps, is standardized for all relays. SIRIUS relays - one range for every application.

Параметры

Width	22.5
Function	For three-phase supply system
Height	103.0
Depth	91.0
Rated frequency	16
With detachable clamps	Да
Error registration possible	Да
Indication of difference current	Да
Type of electric connection	Spring clamp connection
Rated voltage	24
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	24
Max. permitted delay-on energization time	999.9
Min. adjustable delay-on energization time	0.0
Response value amperage 1	30.0
Response value amperage 2	30.0
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	2
