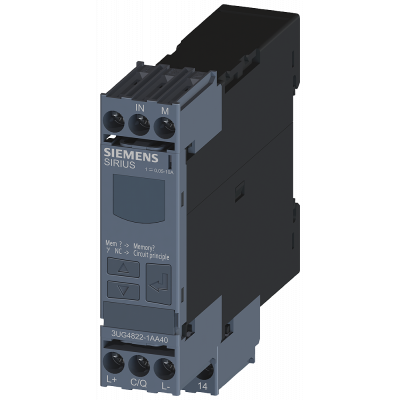

Monitoring relay, digital, current monitoring, 22.5 mm for IO-Link 0.05 to 10.0
133.91€
Включая НДС
Артикул: 3UG4822-1AA40
Цифровое реле контроля Контроль тока, 22,5 мм для IO-Link 0,05–10,0 A AC/DC Повышенный и пониженный ток Коэффициент масштабирования преобразователя Гистерезис 0,01–5,0 A Время задержки пуска Время задержки срабатывания 1 переключающий контакт, винтовой зажим Current monitoring relay with digital setting SIRIUS 3UG4 for monitoring currents for overshooting and undershooting, e.g. for ensuring the functionality of electrical loads or for open-circuit monitoring.
Worldwide use thanks to international certificates. The relay is variably adjustable to overshoot, undershoot or window monitoring. Delay times and RESET behavior are freely parameterizable. Less space required in the control cabinet thanks to slim design. Reliable diagnostics due to display of ACTUAL value and status messages. All versions with removable terminals.
In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. In addition, they are available in various voltages, and optionally with IO-Link.
The comprehensive range of accessories, such as unit labeling plates, push-in lugs and cover caps, is standardized for all relays.
SIRIUS relays - one range for every application.
Параметры
| Width | 22.5 |
| Height | 92.0 |
| Depth | 91.0 |
| Current measurement range | 0.05 |
| External current transformer | - |
| With detachable clamps | Да |
| Single-phase hysteresis possible | Нет |
| Three-phase hysteresis possible | Нет |
| Single-phase under current possible | Да |
| Three-phase under current possible | Нет |
| Single-phase over current possible | Да |
| Three-phase over current possible | Нет |
| Contains function DC-voltage under current | Да |
| Contains function DC-voltage over current | Да |
| Function DC-current hysteresis | Да |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | 18 |
| Max. permitted delay-on energization time | 999.9 |
| Min. adjustable delay-on energization time | 0 |
| Max. permitted off-delay time | 999.9 |
| Min. adjustable off-delay time | 0 |
| Voltage type for actuating | DC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
