Digital monitoring relay unbalance 0-20% connectable phase sequence

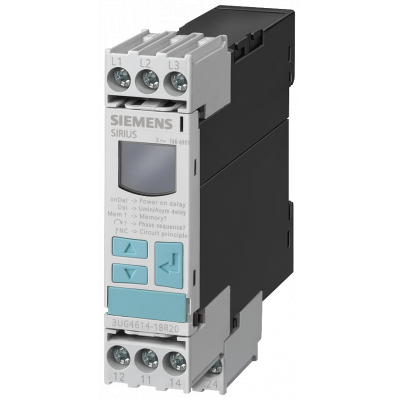

РЕЛЕ КОНТРОЛЯ ЧЕРЕДОВАНИЯ ФАЗ, НЕСИММЕТРИИ 0-20% , ВЫПАДЕНИЯ ФАЗЫ, 3X 160 ДО 690 В AC 50 ДО 60 ГЦ, СНИЖЕНИЯ НАПРЯЖЕНИЯ 160-690 В, ГИСТЕРЕЗИС 1-20 В, ЗАДЕРЖКА ВКЛ. И ОТКЛ. 0-20 С., 2 ПЕРЕКИДНЫХ КОНТАКТА, ВИНТОВЫЕ КЛЕММЫ, ЗАМЕНА ДЛЯ РЕЛЕ 3UG3012-1A… Network monitoring relay with digital setting SIRIUS 3UG4 for monitoring phase sequence, phase failure and phase asymmetry as well as undervoltage and overvoltage, e.g. with unstable networks or mobile systems such as A/C compressors, refrigerated containers, construction site compressors or cranes. Worldwide use thanks to wide voltage supply range and international certificates. The relay is variably adjustable to overshoot, undershoot or window monitoring. Delay times and RESET behavior are freely parameterizable. Less space required in the control cabinet thanks to slim design. Reliable diagnostics due to display of the actual value and type of power system fault. All versions with removable terminals. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. In addition, they are available in various voltages, and optionally with IO-Link or with automatic correction of the direction of rotation. The comprehensive range of accessories, such as unit labeling plates, push-in lugs and cover caps, is standardized for all relays. SIRIUS relays - one range for every application.

Параметры

Width	22.5
Height	92.0
Depth	91.0
Voltage measurement range	160
With detachable clamps	Да
Phase sequence monitoring	Да
Phase failure detection	Да
Function under voltage detection	Да
Function over voltage detection	Нет
Phase imbalance monitoring	Да
Type of electric connection	Screw connection
Rated control supply voltage Us at AC 50HZ	160.0
Rated control supply voltage Us at AC 60HZ	160.0
Rated control supply voltage Us at DC	-
Max. permitted delay-on energization time	20
Min. adjustable delay-on energization time	0.1
Max. permitted off-delay time	20
Min. adjustable off-delay time	0.1
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	2
