Isolation monitoring relay for non-grounded (IT) networks up to 400 V AC, 15-400 Hz

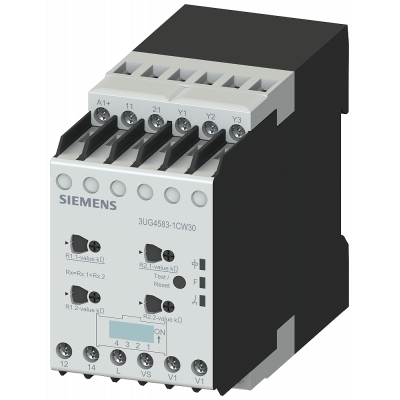

INSULATION MONITORING RELAY FOR UNGROUNDED (IT) NETWORKS UP TO 400 V AC, 15 - 400 HZ AND UP TO 600 V DC MEASURING RANGE 1 - 100/2 - 200 KOHM SUPPLY VOLTAGE AC/DC 24-240 V WIDTH 45 MM 1+1 OR 2 CO CONTACTS, SCREW Insulation monitoring relay with analog setting SIRIUS 3UG4 for monitoring non-grounded (IT) networks for insulation faults, e.g. in systems with strict requirements on availability (chemical industry, automobile manufacture, printing) in shipbuilding and the railway sector or in emergency power supplies. Worldwide use thanks to wide voltage supply range and international certificates. New predictive measurement principle allows very fast response times. Direct connection to networks with mains voltages of up to 690 V AC and 1 000 V DC by means of the 3UG4983-1A voltage reducer module The relay permits a permanent self-monitoring and manual test option. Reliable system diagnostics thanks to unambiguous error messages and connectable fault memory. Apart from devices for insulation monitoring of non-grounded alternating voltage networks, devices are also available for monitoring non-grounded DC and AC voltage networks, with screw terminals in each case. Available accessories comprise cover caps and a voltage reducer module for extending the range of measurement. SIRIUS relays - one range for every application.

Параметры

Width	45.0
Function	For three-phase supply system
Height	78.0
Depth	100.0
Rated frequency	15
With detachable clamps	Нет
Line capacity	20.0
Indication of insulation value	Нет
Error registration possible	Да
Type of electric connection	Screw connection
Rated voltage	-
Rated control supply voltage Us at AC 50HZ	24.0
Rated control supply voltage Us at AC 60HZ	24.0
Rated control supply voltage Us at DC	24
Response value impedance 1	1.0
Response value impedance 2	2.0
Voltage type for actuating	AC/DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	2
