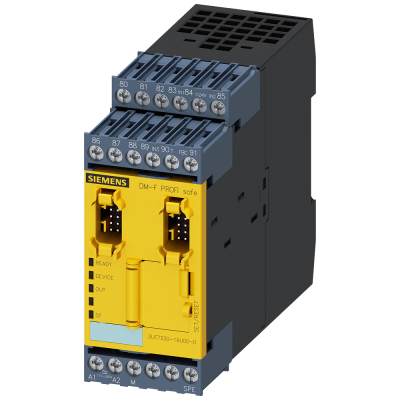

Fail-safe digital module DM-F PROFIsafe, for fail-safe disconnection
478.42€
Включая НДС
Артикул: 3UF7330-1AU00-0
ДОПОЛНИТЕЛЬНЫЙ МОДУЛЬ БЕЗОПАСНОСТИ (FAIL-SAFE) DM-F PROFISAFE, ДЛЯ БЕЗОПАСНОГО ОТКЛЮЧЕНИЯ ЧЕРЕЗ ШИНУ / PROFISAFE, UV: 110..240 V AC/DC, 2 РЕЛЕЙНЫЕ РАЗРЕШАЮЩИЕ ЦЕПИ, 2 РЕЛЕЙНЫХ ВЫХОДА, 3 ВХОДА, МАКС. УРОВЕНЬ SIL (IEC 61508): 3, МАКС. УРОВЕНЬ PL (ISO 13849-1): E Fail-safe digital module DM-FP for the expansion of SIMOCODE pro V (not in the case of Modbus RTU or EtherNet/IP) with the function of a safety relay for the fail-safe disconnection of motors.
Take a step into the future with SIMOCODE pro.
Параметры
| Model | Digital module |
| Switching function | Mono stable |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Number of binary inputs | 3 |
| Rated control supply voltage Us at AC 50HZ | 110.0 |
| Rated control supply voltage Us at AC 60HZ | 110.0 |
| Rated control supply voltage Us at DC | 110 |
| Degree of protection (IP) | IP20 |
| Number of electronic outputs | 0 |
| Number of outputs, with contact | 2 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Input for analogue temperature sensor | Нет |
| Input for earth fault detection | Нет |
| Input for thermistor connection | Нет |
| Voltage type for actuating | AC/DC |
| Degree of protection (NEMA) | - |
