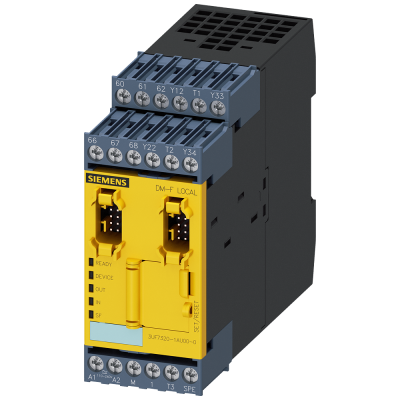

Fail-safe digital module DM-F LOCAL, for fail-safe disconnection
358.18€
Включая НДС
Артикул: 3UF7320-1AU00-0
ДОПОЛНИТЕЛЬНЫЙ МОДУЛЬ БЕЗОПАСНОСТИ (FAIL-SAFE) DM-F LOCAL, ДЛЯ БЕЗОПАСНОГО ОТКЛЮЧЕНИЯ ПО СИГНАЛУ ОТ ФИЗИЧЕСКОГО ДАТЧИКАL, UV: 110…240 V AC/DC, 2 РЕЛЕЙНЫЕ РАЗРЕШАЮЩИЕ ЦЕПИ, 2 РЕЛЕЙНЫХ ВЫХОДА, ФУНКЦИИ БЕЗОПАСНОСТИ ВЫБИРАЮТСЯ DIL ПЕРЕКЛЮЧАТЕЛЕМ, МАКС. УРОВЕНЬ SIL (IEC 61508): 3, МАКС. УРОВЕНЬ PL (ISO 13849-1): E, Fail-safe digital module DM-FL for the expansion of SIMOCODE pro V with the function of a safety relay for the fail-safe disconnection of motors.
Take a step into the future with SIMOCODE pro.
Параметры
| Model | Digital module |
| Switching function | Mono stable |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Number of binary inputs | 0 |
| Rated control supply voltage Us at AC 50HZ | 110.0 |
| Rated control supply voltage Us at AC 60HZ | 110.0 |
| Rated control supply voltage Us at DC | 110 |
| Degree of protection (IP) | IP20 |
| Number of electronic outputs | 0 |
| Number of outputs, with contact | 2 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Input for analogue temperature sensor | Нет |
| Input for earth fault detection | Нет |
| Input for thermistor connection | Нет |
| Voltage type for actuating | AC/DC |
| Degree of protection (NEMA) | - |
