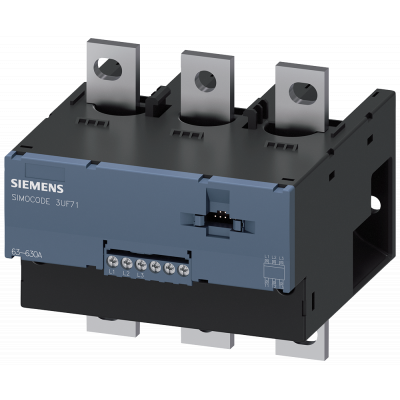

Current/voltage measuring module V2, 63-630 A, width 145 mm, busbar connection
410.63€
Включая НДС
Артикул: 3UF7114-1BA01-0
Модуль измерения тока/напряжения второго поколения V2 диапазон токов 63...630 A, измерение напряжения до 690 В, габаритная ширина 145 мм, шинное подключение, совместим с базовым модулем SIMOCODE pro V PB с опцией -ZB01 (версия не ниже E15 (V 4.0)), SIMOCODE pro V ModBus RTU с опцией -ZB01 (версия не ниже E03 (V 2.0)), SIMOCODE pro V PN версии не ниже Е10, SIMOCODE pro V EIP The device records current, voltage, frequency and power with increased accuracy.
Take a step into the future with SIMOCODE pro.
Параметры
| Switching function | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Number of binary inputs | - |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Degree of protection (IP) | IP00 |
| Rated operation current Ie | - |
| Number of electronic outputs | - |
| Number of outputs, with contact | 0 |
| Type of interface | - |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Rated operation frequency | 50.0 |
| Rated voltage Ue at AC 50 Hz | 110 |
| Rated voltage Ue at AC 60 Hz | 110 |
| Rated voltage Ue at DC | - |
| Input for analogue temperature sensor | - |
| Input for earth fault detection | - |
| Input for thermistor connection | Нет |
| Voltage detection module | Да |
| Current detection module | Да |
| Type of connection system | Rail connection |
| Voltage type for actuating | - |
| Degree of protection (NEMA) | - |
