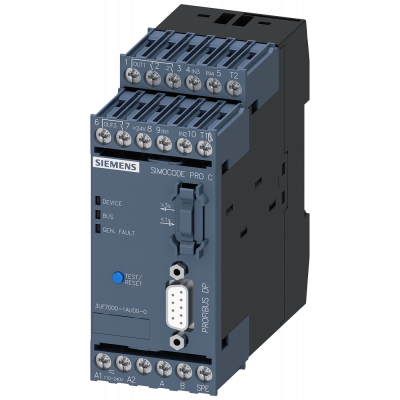

Basic unit 1 SIMOCODE pro C, PROFIBUS DP interface 12 Mbit/s, RS 485, 4 I/3 Q
415.74€
Включая НДС
Артикул: 3UF7000-1AU00-0
БАЗОВЫЙ МОДУЛЬ 1 SIMOCODE PRO C, PROFIBUS DP-ИНТЕРФЕЙС, 12 МБИТ/С, RS485, 4 ВХОДА / 3 ВЫХОДА СВОБОДНО ПАРАМЕТРИРУЕМЫЕ, US: AC/DC 110-240V, ТЕРМИСТОРНАЯ ЗАЩИТА ДВИГАТЕЛЯ, МОНОСТАБИЛЬНЫЕ ВЫХОДЫ Motor management system SIMOCODE pro C for extensive protection, monitoring and control functions for asynchronous motors and detailed operating, service and diagnostics data for process control systems and control systems using the most common fieldbus systems.
The compact motor management system with PROFIBUS DP interface for direct-on-line starters and reversing starters or for controlling a motor starter protector functions independently of the automation system. It supplies detailed operational, service and diagnostics data – at any time or place. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex) are available. Deployment with IE3/IE4 motors is supported. The SIMOCODE ES (TIA Portal) software is available for the configuration, commissioning, operation and diagnostics of SIMOCODE pro. The SIMOCODE pro block library for SIMATIC PCS 7 is used for the simple integration of SIMOCODE pro into the SIMATIC PCS 7 process control system.
The SIMOCODE pro C basic units are available with 24 V DC or 110-240 V AC/DC control supply voltage.
Operation requires at least one current measuring module and a matching 3UF793 connecting cable. These, as well as an optional operator panel, are available separately.
Take a step into the future with SIMOCODE pro.
Параметры
| Switching function | Mono stable |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Number of binary inputs | 4 |
| Rated control supply voltage Us at AC 50HZ | 110.0 |
| Rated control supply voltage Us at AC 60HZ | 110.0 |
| Rated control supply voltage Us at DC | 110 |
| Degree of protection (IP) | IP20 |
| Rated operation current Ie | - |
| Number of electronic outputs | 0 |
| Number of outputs, with contact | 3 |
| Type of interface | - |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Rated operation frequency | - |
| Rated voltage Ue at AC 50 Hz | - |
| Rated voltage Ue at AC 60 Hz | - |
| Rated voltage Ue at DC | - |
| Input for analogue temperature sensor | - |
| Input for earth fault detection | Нет |
| Input for thermistor connection | Да |
| Voltage detection module | Нет |
| Current detection module | Да |
| Type of connection system | None |
| Voltage type for actuating | AC/DC |
| Degree of protection (NEMA) | - |
