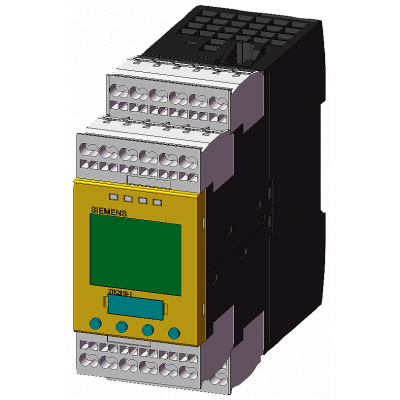

SIRIUS safety relay safety-oriented speed monitoring
1 115.88€
Включая НДС
Артикул: 3TK2810-1KA42-0AA0
SIRIUS SAFETY RELAY SAFETY-RELATED SPEED MONITORING, 110 - 240 V AC/DC, 45.0 MM, ПРУЖИННЫЕ КЛЕММЫ,, ENABLING CIRCUIT, INSTANTANEOUS: 2NO, ENABLING CIRCUIT, DELAYED: 0, SIGNALING CIRCUIT: 2 ELECTRICAL, NAMUR VERSION AUTO START / MANUAL START, BASIC UNIT, MAX. ERR. PL EN13849-1: E, MAX. ERR. SIL TO IEC61508:3, Speed monitor SIRIUS 3TK2810-1 for reliable standstill and speed monitoring in machines and plants, e.g. with motors.
The device is suitable for all commonly used sensors and has a release delay feature that can be set by the user. Through simple parameterization and permanent diagnostics on the display, faults can be quickly remedied at any time. Thanks to integrated protective door monitoring, the device ensures greater safety because access to the plant is allowed only in the safe state.
Each device is available with various voltages as well as with screw-type or spring-loaded terminals.
Accessories such as connecting cables, adapters and labels make handling easier.
Safety is a SIRIUS business.
Параметры
| Width | 45.0 |
| Model | Other |
| Height | 107.7 |
| Depth | 124.3 |
| Release-delay | - |
| With approval according to UL | Да |
| With detachable clamps | - |
| With start input | Да |
| With feedback circuit | Да |
| Number of outputs, safety related, undelayed, with contact | - |
| Number of outputs, safety related, delayed, with contact | - |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | - |
| Number of outputs, signalling function, delayed, with contact | - |
| Number of outputs, signalling function, undelayed, semiconductors | 1 |
| Number of outputs, signalling function, delayed, semiconductors | 1 |
| Type of electric connection | Spring clamp connection |
| Rail mounting possible | Нет |
| Rated control supply voltage Us at AC 50HZ | 110 |
| Rated control supply voltage Us at AC 60HZ | 110 |
| Rated control supply voltage Us at DC | 110 |
| With muting function | Нет |
| Type of safety acc. IEC 61496-1 | - |
| With approval for TÜV | Да |
| With approval for BG BIA | Нет |
| Category according to EN 954-1 | None |
| Suitable for monitoring of magnetic switches | Нет |
| Suitable for monitoring of proximity switches | Да |
| Suitable for monitoring of emergency-stop circuits | Нет |
| Suitable for monitoring of optoelectronic protection equipment | Нет |
| Suitable for monitoring of position switches | Да |
| Suitable for monitoring of tactile sensors | Нет |
| Suitable for monitoring of valves | Нет |
| Performance level acc. EN ISO 13849-1 | Level e |
| Stop category acc. IEC 60204 | 0 |
| Voltage type for actuating | AC/DC |
| Evaluation inputs | 2-channel |
| SIL according to IEC 61508 | 3 |
