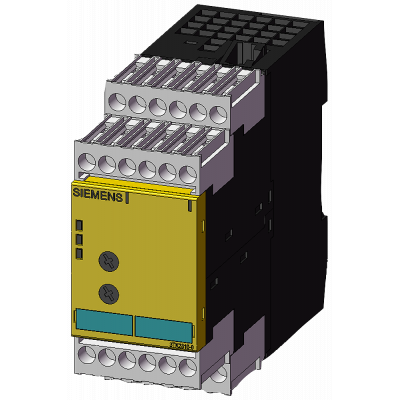

Safety switching device safety-oriented standstill monitoring, 400 V AC
651.14€
Включая НДС
Артикул: 3TK2810-0JA01
РЕЛЕ БЕЗОПАСНОСТИ SIRIUS ДЛЯ SAFETY-ORIENTED STANDSTILL MONITORING, 400V, AC, 45.0MM, ВИНТОВЫЕ КЛЕММЫ, FK INSTANT.: 3НО 1НЗ, FK DELAYED: 0, MK: 3, AUTO START, BASIC UNIT, MAX. ACHIEV. CAT. EN954-1: 4, MAX. ACHIEV. SIL ДО IEC61508:3, Standstill monitor SIRIUS 3TK2810-0 for reliable standstill monitoring with motors.
This versatile device can be used with various motors and frequency converters, and features standstill delay that can be set by the user. The cost is low as no additional sensors are required. Fast fault diagnostics and display by means of fault LEDs increase system availability.
Each device is available with various voltages as well as with screw-type or spring-loaded terminals.
Accessories such as labels make handling easier.
Safety is a SIRIUS business.
Параметры
| Width | 45.0 |
| Model | Other |
| Height | 138.5 |
| Depth | 120.0 |
| Release-delay | - |
| With approval according to UL | Да |
| With detachable clamps | Да |
| With start input | Нет |
| With feedback circuit | Да |
| Number of outputs, safety related, undelayed, with contact | - |
| Number of outputs, safety related, delayed, with contact | - |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | - |
| Number of outputs, signalling function, delayed, with contact | - |
| Number of outputs, signalling function, undelayed, semiconductors | 2 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Rated control supply voltage Us at AC 50HZ | 400 |
| Rated control supply voltage Us at AC 60HZ | 400 |
| Rated control supply voltage Us at DC | - |
| With muting function | Нет |
| Type of safety acc. IEC 61496-1 | - |
| With approval for TÜV | Да |
| With approval for BG BIA | Да |
| Category according to EN 954-1 | None |
| Suitable for monitoring of magnetic switches | Нет |
| Suitable for monitoring of proximity switches | Нет |
| Suitable for monitoring of emergency-stop circuits | Нет |
| Suitable for monitoring of optoelectronic protection equipment | Нет |
| Suitable for monitoring of position switches | Нет |
| Suitable for monitoring of tactile sensors | Нет |
| Suitable for monitoring of valves | Нет |
| Performance level acc. EN ISO 13849-1 | Level e |
| Stop category acc. IEC 60204 | 0 |
| Voltage type for actuating | AC |
| Evaluation inputs | Other |
| SIL according to IEC 61508 | 3 |
