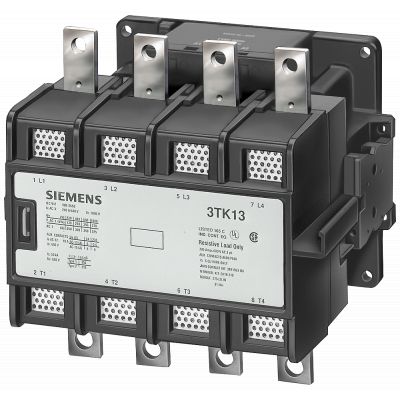

Контактор, AC-1, 4-полюсный, 1000 A Главные контакты 4 НО, вспомогательные контакты 2 НО + 2 НЗ, работа на переменном токе 230 В AC, 50/60 Гц
4 305.98€
Включая НДС
Артикул: 3TK1742-0AL2
Контактор, AC-1, 4-полюсный, 1000 A Главные контакты 4 НО, вспомогательные контакты 2 НО + 2 НЗ, работа на переменном токе 230 В AC, 50/60 Гц
Параметры
| Modular version | Да |
| Rated operation power at AC-3, 400 V | 370.0 |
| Number of main contacts as normally open contact | 4 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Rated operation current Ie at AC-3, 400 V | 700 |
| Rated operation current Ie at AC-1, 400 V | - |
| Rated control supply voltage Us at AC 50HZ | 230 |
| Rated control supply voltage Us at AC 60HZ | 230 |
| Rated control supply voltage Us at DC | - |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation power at AC-4, 400 V | - |
| Rated operation power NEMA | - |
