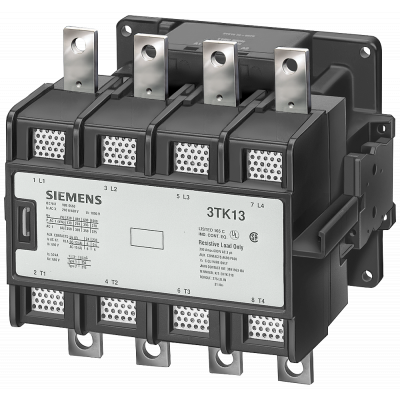

Contactor AC-1, 4-pole 800 A, main contacts 4 NO, auxiliary contacts 2 NO + 2 NC, AC operation
3 196.67€
Включая НДС
Артикул: 3TK1542-0AF0
AC-1 КОНТАКТОР, 4-Х ПОЛЮСНЫЙ, 800 A, ГЛАВНЫЙ КОНТАКТ 4НO, ДОПОЛНИТЕЛЬНЫЕ КОНТАКТЫ 2НО+2НЗ, УПРАВЛЕНИЕ ПЕРЕМЕННЫМ ТОКОМ AC 110V 50ГЦ/AC 132V 60ГЦ
Параметры
| Modular version | Да |
| Rated operation power at AC-3, 400 V | 280.0 |
| Number of main contacts as normally open contact | 4 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Rated operation current Ie at AC-3, 400 V | 550 |
| Rated operation current Ie at AC-1, 400 V | - |
| Rated control supply voltage Us at AC 50HZ | 110 |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation power at AC-4, 400 V | - |
| Rated operation power NEMA | - |
