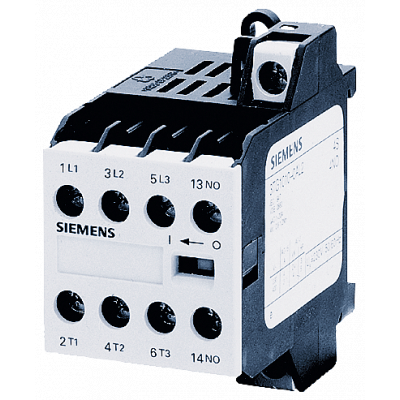

Motor contactor EKS 4 NO AC operation 110 V AC, 45-4
22.06€
Включая НДС
Артикул: 3TG1010-0AG2
КОНТАКТОР ВИНТОВЫЕ КЛЕММЫ, 4НО ДЛЯ ЗАЩЕЛКИВАНИЯ НА СТАНДАРТНОЙ МОНТАЖНОЙ РЕЙКЕ УПРАВЛЕНИЕ AC 110V 50/60ГЦ miniature contactor SIRIUS 3TG10 for switching control signals in the control circuit, e.g. for household appliances, hoisting equipment or installation areas.
The 3TG10 miniature contactors are characterized by their narrow width. They operate hum-free, are provided with an integral auxiliary switch and can be installed in any mounting position.
The 3TG10 miniature contactors are available with AC or DC operation, for various operational currents, with 4 normally open contacts or 3 normally open contacts and 1 normally closed contact and with screw terminals or flat connectors.
Simple, efficient and always up to date - SIRIUS modular system.
Параметры
| Modular version | Да |
| Rated operation power at AC-3, 400 V | 4.0 |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 8.4 |
| Rated operation current Ie at AC-1, 400 V | 20 |
| Rated control supply voltage Us at AC 50HZ | 110.0 |
| Rated control supply voltage Us at AC 60HZ | 110.0 |
| Rated control supply voltage Us at DC | - |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation power at AC-4, 400 V | - |
| Rated operation power NEMA | - |
