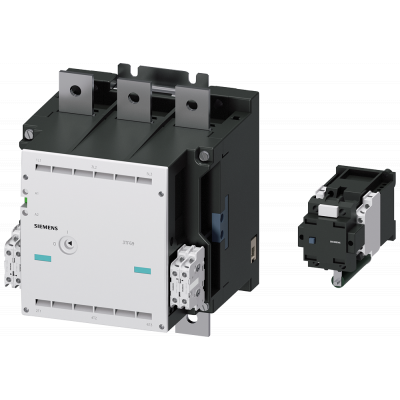

Contactor size 14, 3-pole, AC-3, 450 kW, 400/380 V (1000 V) (3 NO + 3 NC) 3TC4417-4 A

КОНТАКТОР ТИПОРАЗМЕР 14, 3-ПОЛЮСА AC-3, 450КВТ, 400/380V (690V) ДОП. КОНТАКТЫ 33 (3НО+3НЗ) С 3TC44174A РЕВЕРСИВНЫМ ПУСКАТЕЛЕМ И ПОСЛЕД. РЕЗИСТОР ЦЕПЬ ПОСТ. ТОКА НИЗКОГО ПОТРЕБЛЕНИЯ DC 230V Vacuum contactor 3TF6 for switching motors. The 3TF6 vacuum contactors offer convincing high performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. They are therefore particularly well suited to frequent switching in inching operation. Pre-installed auxiliary switches reduce the complexity of your design. The devices are approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in two sizes, with AC and DC operation, and in a wide performance range. The devices can be connected in the main circuit by means of rails. A wide range of accessories is available for these contactors, such as surge suppressors, auxiliary switches or terminal covers.

Параметры

Modular version	Да
Rated operation power at AC-3, 400 V	400.0
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	3
Number of auxiliary contacts as normally closed contact	3
Rated operation current Ie at AC-3, 400 V	820
Rated operation current Ie at AC-1, 400 V	910
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	230
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	DC
Rated operation current Ie at AC-4, 400 V	690
Rated operation power at AC-4, 400 V	-
Rated operation power NEMA	514.849125
