Contactor size 14, 3-pole, AC-3, 335 kW, 400/380 V (690 V) (4 NO + 4 NC)

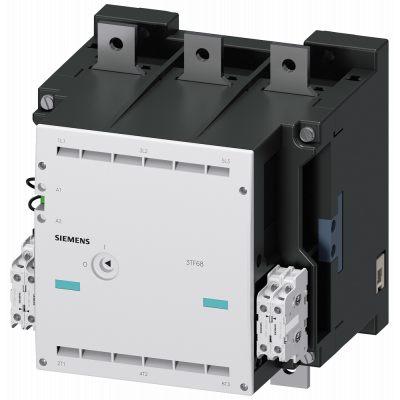

КОНТАКТОР ТИПОРАЗМЕР 14, 3-ПОЛЮСА AC-3, 335КВТ, 400/380V (690V) ДОПОЛНИТЕЛЬНЫЕ КОНТАКТЫ 44 (4НO+4НЗ) УПРАВЛЕНИЕ ПЕРЕМЕННЫМ ТОКОМ AC 380 ДO 460V 50/60ГЦ Vacuum contactor 3TF6 for switching motors. The 3TF6 vacuum contactors offer convincing high performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. They are therefore particularly well suited to frequent switching in inching operation. Pre-installed auxiliary switches reduce the complexity of your design. The devices are approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in two sizes, with AC and DC operation, and in a wide performance range. The devices can be connected in the main circuit by means of rails. A wide range of accessories is available for these contactors, such as surge suppressors, auxiliary switches or terminal covers.

Параметры

Modular version	Да
Rated operation power at AC-3, 400 V	335.0
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	4
Number of auxiliary contacts as normally closed contact	4
Rated operation current Ie at AC-3, 400 V	630
Rated operation current Ie at AC-1, 400 V	700
Rated control supply voltage Us at AC 50HZ	380.0
Rated control supply voltage Us at AC 60HZ	380.0
Rated control supply voltage Us at DC	-
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC
Rated operation current Ie at AC-4, 400 V	610
Rated operation power at AC-4, 400 V	-
Rated operation power NEMA	389.8143375
