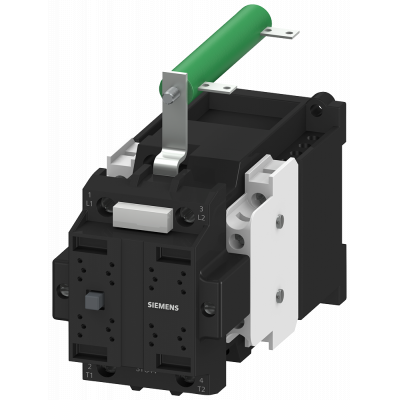

Contactor size 2, 2-pole DC-3 and 5, 7.5 A at 750 V auxiliary contacts 21
250.74€
Включая НДС
Артикул: 3TC4417-0LF4
КОНТАКТОР РАЗМЕР 2 2-ПОЛЮС. ДЛЯ ПРИМЕНЕНИЯ НА ЖЕЛ. ДОРОГЕ DC-3 И 5, 7, 5A AT 750V ДОПОЛНИТЕЛЬНЫЕ КОНТАКТЫ 21 (2НО+1НЗ) ДИАПАЗОН УСТАВОК 0.7 ДO 1.25X US ПЕРЕКЛЮЧАЕМЫЙ С ВАРИСТОРОМ. DC РАБОТА КАТУШКА ПОСТ. ТОКА DC 110V Contactor 3TC for switching DC voltage, 2-pole.
The 3TC DC contactors offer convincing performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
They are available with AC and DC operation, in various voltages and with different auxiliary contacts.
Arc chambers, solenoid coils and surge suppressors, for example, are available as accessories.
Параметры
| Modular version | Да |
| Number of main contacts as normally open contact | 2 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Type of electrical connection of main circuit | Screw connection |
| Rated operation power at DC-3 / DC-5 at 440 V | 9.0 |
| Rated operation current Ie at DC-3 / DC-5 at 440 V | 29 |
| Voltage type for actuating | DC |
