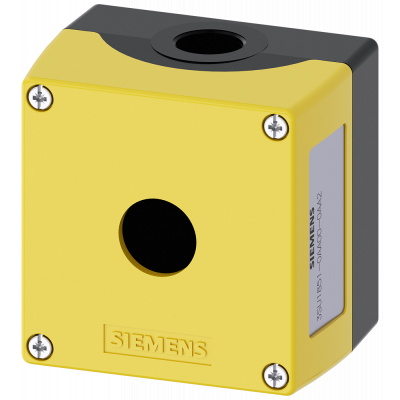

Enclosure for command devices, 22 mm, round, metal, yellow, 1 command point

ПУСТОЙ КОРПУС ДЛЯ СБОРКИ ПОСТА УПРАВЛЕНИЯ С КНОПКОЙ 22MM, С КРУГЛЫМ ВЫРЕЗОМ, МАТЕРИАЛ КОРПУСА - МЕТАЛЛ, КРЫШКА КОРПУСА - ЖЁЛТАЯ, 1 ТОЧКА УПРАВЛЕНИЯ, 1 ТОЧКА УПРАВЛЕНИЯ, МЕТАЛЛ, МОНТАЖ КОНТАКТНЫХ МОДУЛЕЙ - НА ОСНОВАНИИ КОРПУСА, TOP AND BOTTOM 1 X M20 EACH Enclosures SIRIUS ACT for mounting the 22.5 mm pushbuttons and indicator lights for separately allocated control units and cabinets. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Yellow/gray, plastic/metal, 1-6 command points, empty enclosure/pre-equipped, optionally with AS-Interface connection. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Параметры

Width	85.0
Height	89.4
Depth	64.0
Diameter openings	22.3
Number of command positions	1
Colour housing cover	Yellow
Material housing	Other
Construction type housing	Surface mounting housing
Degree of protection (IP)	IP67/IP69K
Material quality housing	-
Degree of protection (NEMA)	Other
