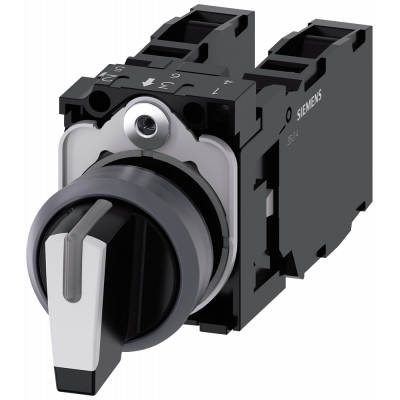

Toggle switch illuminable 22 mm round metal front ring white 1 NO+1 NC 1 NO+1 NC
26.23€
Включая НДС
Артикул: 3SU1130-2BM60-1LA0
ПОВОРОТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ С ВОЗМОЖНОСТЬЮ ПОДСВЕТКИ, 22MM, КРУГЛЫЙ, ПЛАСТИК С МЕТАЛЛИЧЕСКИМ ФРОНТАЛЬНЫМ КОЛЬЦОМ, КОРОТКАЯ ЧЁРНАЯ РУКОЯТКА С БЕЛОЙ ВСТАВКОЙ, 3 КОММУТАЦИОННЫХ ПОЛОЖЕНИЯ I>O
Параметры
| Hole diameter | 22.3 |
| Colour button | White |
| Number of switch positions | 3 |
| Suitable for illumination | Да |
| Spring-return | Нет |
| Colour front ring | Other |
| Type of electric connection | - |
| Supply voltage | 5 |
| Width opening | 32.3 |
| Height opening | 28.8 |
| Degree of protection (IP) | IP67/IP69K |
| With light source | Нет |
| Material front ring | Other |
| With front ring | Да |
| Type of control element | Toggle |
| Switching function latching | Нет |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 1, 2, 3, 3R, 4, 4X, 12, 13 |
