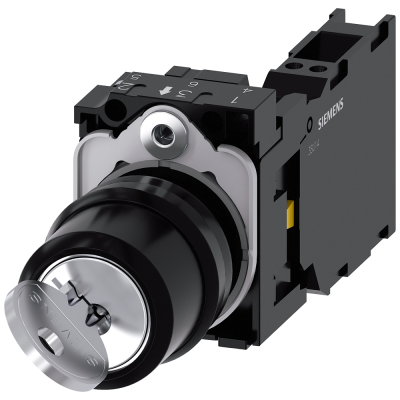

Переключатель с ключом Ronis, 22 мм, кругл., пластмасса, номер замка SB30, с 2 ключами, 2 положения переключателя O-I, с фиксацией, 10:30 ч/13:30 ч, с

Переключатель с ключом Ronis, 22 мм, кругл., пластмасса, номер замка SB30, с 2 ключами, 2 положения переключателя O-I, с фиксацией, 10:30 ч/13:30 ч, с держателем, 2 x 1 НЗ с контролем монтажа, подключение на пружинных клеммах: возможные специальные запоры: SB31, 421, 455 Key-operated switches SIRIUS ACT for meeting higher demands for access security. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions. Note: Complete unit, delivery includes holders and modules. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Параметры

Hole diameter	22.3
Colour button	Silver
Number of switch positions	2
Suitable for illumination	Нет
Spring-return	Нет
Colour front ring	Black
Type of electric connection	-
Supply voltage	5
Width opening	29.5
Height opening	49.4
Degree of protection (IP)	IP67/IP69K
With light source	Нет
Material front ring	Plastic
With front ring	Да
Type of control element	-
Switching function latching	Нет
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Degree of protection (NEMA)	1, 2, 3, 3R, 4, 4X, 12, 13
