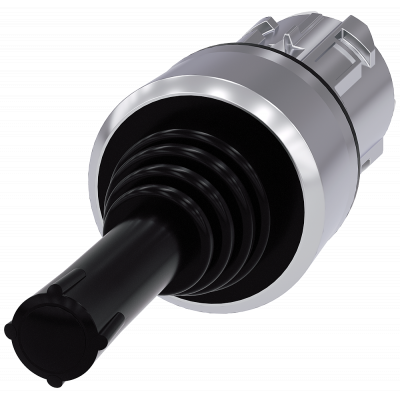

Coordinate switch, 22 mm, round, metal high gloss, black, horizontal latching

Координатный соединитель, 22 мм, кругл., глянцевый металл, цвет: черный, 2 положения переключателя, с фиксацией по горизонтали, без механической блокировки Coordinate switches SIRIUS ACT for simple navigation tasks. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: 2/4 switching positions, latching/momentary-contact operation. Note: Single device, please order holders and modules separately. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Параметры

Number of switch levels	2
Rated operation current Ie at AC-21, 400 V	-
Centre mounting, hole diameter	22.3
Number of actuation directions	2
Number of normally open contacts per actuation direction	-
With retraction in 0-position	Нет
Colour front ring	Other
Analogue output signal configurable	Нет
Degree of protection (IP)	IP65/IP67
Number of make-and-break contacts per direction	-
Coder	Нет
Material front ring	Other
With front ring	Да
Locking in 0-position	Нет
Joy stick length	71.3
Number of normally closed contacts per actuation direction	-
Degree of protection (NEMA)	-
